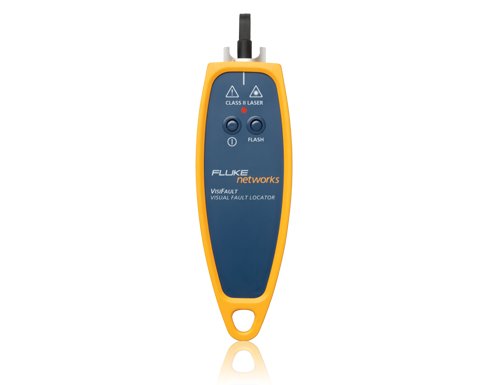

VisiFault™ Visual Fault Locator - Cable Continuity Tester

Model No :

Key Features

Fiber Verification and Fault Location

VisiFault emits a bright beam of red light easily visible from a distance. Connect the VisiFault to one end of a fiber then locate that fiber at the other end, even if it is one of many fibers either in a cable or terminated in a rack. Perform simple end-to-end continuity checks. Verify the proper polarity and orientation of fibers within a multi-fiber connector like the MT-RJ.

VisiFault can quickly illuminate fiber breaks, damaged connectors on patch cords, defective splices in splice trays, and tight fiber bends in and around equipment racks. The choice of a continuous wave output mode for steady fault illumination or a flashing output mode makes for easier fault location.

Easy To Use

The integrated universal 2.5mm adapter makes for easy connection to SC, ST, FC, and FJ connectors. The optional 1.25mm adapter allows for connection to LC and MU connectors. Attach the VisiFault to your belt using a lanyard or in the carrying case so it is always on hand when you need it. Two AA batteries give you more than 80 hours of continuous mode battery life.

Rugged construction

Fluke Networks built the VisiFault to last. VisiFault incorporates an energy-absorbing holster over an impact-resistant case to withstand drops, impacts, and rough treatment, ensuring years of trouble-free operation. Together with a heavy-duty tethered end cap to protect the fiber adapter, VisiFault is the VFL for demanding field applications. Unlike more fragile VFLs that utilize a flashlight body or plain plastic case, Fluke Networks industrially engineered the VisiFault custom case to be mechanically tough. The case is compact for field use and ergonomically designed for comfort.

Call Us Now

In today's fast-paced workplace maximizing productivity is essential. Whether installing new fiber links or troubleshooting an existing network, the faster you can locate a problem, the faster you can fix it. That's easier said than done when you are faced with a complex network of fibers, connectors, and patch cords.

You can diagnose and repair simple fiber link problems with Fluke Networks' VisiFaultTM Visual Fault Locator (VFL). The laser-powered VisiFault Visual Fault Locator is a cable continuity tester that locates fibers, and verifies cable continuity and polarity. This cable continuity tester helps find breaks in cables, connectors, and splices. Continuous and flashing modes make for easier identification. Compatible with 2.5mm and 1.25mm connectors for easy connection. Ruggedly constructed for demanding field testing. This visual fault locator has a long battery life for hours of use.

Optical
Fiber compatibility	Multimode and Singlemode
Wavelength	650 nm (visible wavelength)
Laser safety rating	Class II
Output power	< 1.3 mW
Output modes	Continuous (steady) and flashing (2-3Hz pulsed)
Range	3 km multimode, 4 km singlemode

Environmental and mechanical
Operating temperature	0 °C to 40 °C
Storage temperature	-20 °C to 60 °C
Relative humidity	95% (10 to 35 °C)
Vibration	Random, 2g, 5-500 Hz
Shock	1 m drop onto all corners and face
Altitude	3000 m

General
Dimensions	157 x 52 x 37 mm (6.2 x 2.0 x 1.3 inch)
Weight (including batteries)	0.18 kg (5.7 oz)
Adapter	2.5 mm universal
Adapter cap	Tethered protective end cap
Controls	On/off, continuous/flashing
Battery type	2 x AA
Battery life	> 80 hours in continuous mode
Safety	CSA C22.2 No. 1010.1 1992, EN 61010-1, CE
Carrying Case	Soft-sided with belt loop

Models
VisiFault	VisiFault Visual Fault Locator with 2.5mm universal adapter, two AAA batteries
VISIFAULT-FIBERLRT	VisiFault Visual Fault Locator with 2.5mm universal adapter, two AAA batteries; FiberLert live fiber detector, 850 nm to 1625 nm with two AAA batteries. See Photo
Accessories
NF380	Universal VisiFault adapter for connectors with 1.25mm ferrules
