Key Features

Pro3000 Capability

Use the SmartTone capability of the Pro3000 Analog Tone Generator to identify the right pair. When touching the wires together and momentarily shorting the far end of a cable pair, the SmartTone technology will change the cadence of the tone generated. This tone change you hear through the probe positively verifies the correct wire pair. SmartTone provides five distinct tones for exact pair identification.

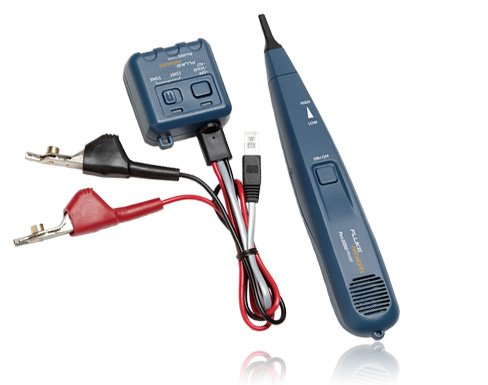

Tone Generator features:

• SmartTone technology
• Send tone signal up to 10 miles on most cables
• Line cord features angled bed-of-nails clips and ruggedized RJ-11 plug for direct access to phone and data jacks without adapters
• An external switch allows a selection of solid or alternating tone options, indi­cated with solid or flashing LEDs
• Continuity testing
• Line polarity confirmation

Pro3000 Design

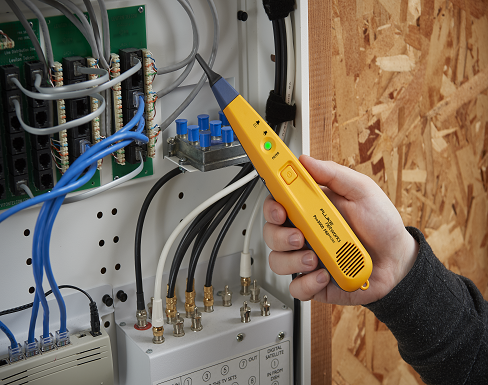

The Pro3000’s ergonomic sleek design is easy to handle and use. The large speaker on the probe makes the tone easier to hear through walls, enclosures, wood or plaster. A recessed on/off button helps prevent the probe from accidentally being turned on in the pouch. It accommodates a headset (sold separately) for use in noisy environments.

Probe features:

• A loud large speaker amplifies tone through walls, enclosures, wood or plaster
• Easy-to-use adjustable volume control dial
• “Quick-twist” tip for easy replacement

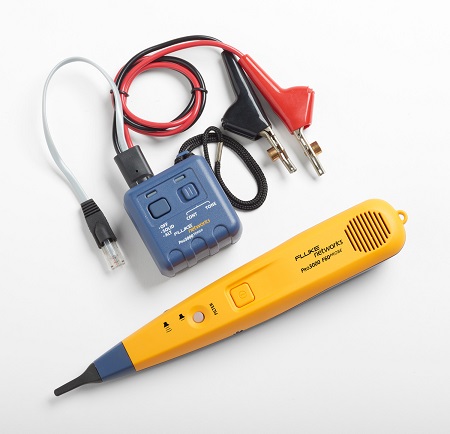

• Free spare tip inside Pro3000 Tone and Probe Kit

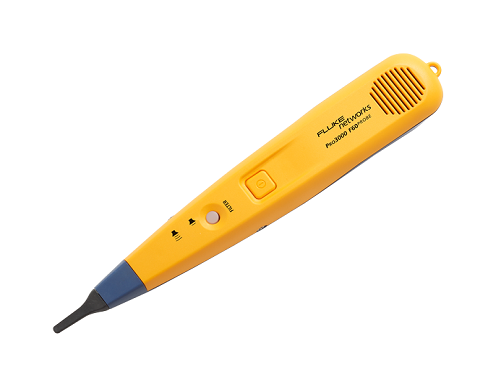

Pro3000F Filtered Probe

Signal Interference from sources in the environment can make tracing cable a frustrating process. The Pro3000F Filter probe “Stops the Buzz” by obstructing these signals allowing you to hear the tone you are tracing loud and clear. The Pro3000F is available in 2 versions:

• The Pro3000F60 which filters out 60 Hz interference which is the standard frequency in North America
• The Pro3000F50 which filters out 50 Hz interference which is common in Europe, Asia, and the Pacific.
