Fluke 279 FC True-rms Thermal Multimeter

Model No :

Key Features

Full-featured multimeter with built-in thermal imager
15 measurement functions including voltage ac and dc, resistance, continuity, capacitance, diode test, Min/Max/Avg, current ac with included iFlex current probe
Assembled in the USA
Three year standard warranty
CAT III 1000 V, CAT IV 600 V measurement category
Designed for durability, built to withstand a 1 m (3 ft) drop, double insulated with a raised rubber holster for increased protection

Call Us Now

Product overview: Fluke 279 FC True-rms Thermal Multimeter

Find, repair, validate, and report electrical issues quickly

Locate the problem immediately

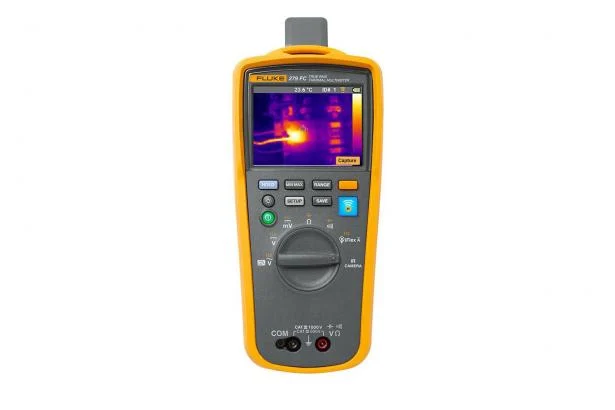

Thermal imaging multimeters are a first-line troubleshooting tool for electrical equipment that can check hot spots on high-voltage equipment and transformers, and detect heating of fuses, wires, insulators, connectors, splices, and switches. Scanning with the 279 FC's thermal imager reveals many electrical issues rapidly and from a safe distance. By combining two tools into one, the thermal multimeter lightens the load and increases productivity.

Expanded functionality

Compatible with iFlex® (a flexible current clamp) to expand your measurement capabilities and get into tight, hard-to-reach spaces for current measurement (up to 2500 A AC). The large full-color LCD screen makes for easier and clearer viewing of images and readings. The 10-hour+ rechargeable battery keeps you going all day long under normal conditions.

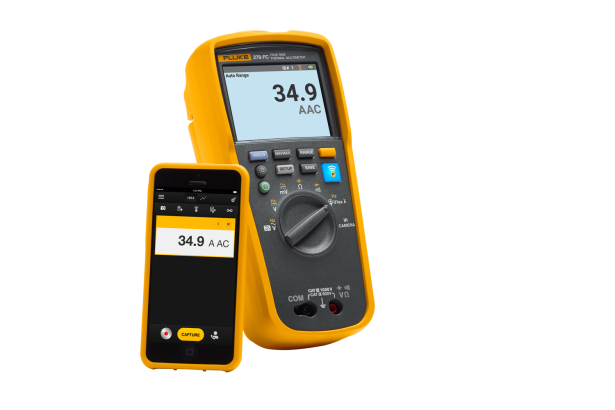

With built-in Fluke Connect®, transmit results wirelessly to a smartphone and save time on reporting to validate work is complete. Troubleshoot better by instantly trending and monitoring measurements live on your smartphone screen. Create and email reports right from the field.


	Fluke 115 Field Technicians Digital Multimeter	Fluke 87V Industrial Multimeter	Fluke 3000 FC Series Wireless Multimeter	Fluke 1587 FC Insulation Multimeter	Fluke 279 FC True-rms Thermal Multimeter
CAT rating	CAT III 600 V	CAT III 1000 V CAT IV 600 V	CAT III 1000 V CAT IV 600 V	CAT III 1000 V CAT IV 600 V	CAT III 1000 V CAT IV 600 V
True-rms readings	✔	✔	✔	✔	✔
Voltage AC/DC	600 V	1000 V	1000 V	1000 V	1000 V
Current AC/DC	10 A	10 A	400 mA	400 mA	2500 A AC (with iFlex)
Resistance	40 MΩ	50 MΩ	50 MΩ	50 MΩ	50 MΩ
Capacitance	10,000 μF	10,000 μF	10,000 μF	10,000 μF	10,000 μF
Temperature	-	-200.0 °C to 1090 °C	with t3000 FC	-40 °C to 537 °C	Infrared camera -10 °C to 200 °C
Infrared camera	-	-	-	-	✔
Additional measurement capabilities	Continuity/diode test	Frequency, continuity/diode test, motor drive (VFD) measurement, duty cycle, microamps, analog bar graph, relative reference	Frequency, continuity/diode test. Able to connect to three 3000 FC modules.	Frequency, Pi/DAR timed ratio tests, continuity/diode test, motor drive (VFD) measurement, microamps, relative reference	Frequency, continuity/diode test, motor drive (VFD) measurement

Specifications: Fluke 279 FC True-rms Thermal Multimeter

DMM
Basic dc accuracy	0.09%
Bandwidth	1% 45 Hz to 65 Hz, full time low pass filter
Voltage	ac/dc 1000 V
Current ac	2500 A with included iFlex Flexible Current Probe
Resistance	50 MΩ
Frequency	100 kHz
Capacitance	9,999 µF
Continuity with beeper	Yes
Diode test	Yes
Min/Max recording	Yes
Display Hold	Yes

Infrared camera
Infrared resolution	102 x 77
Image capture frequency	8 Hz
Field of View	36° (w) x 27° (h)
NETD	≤200 mK
Infrared spectral band	7.5 to 14 microns
Center point	Yes (with center point temp)
Focus mechanism	Fixed focus
Temperature Range (selectable °C and °F)	-10 °C to 200 °C (14 °F to 392 °F) Accuracy: ±5 °C (9 °F) or (±5% as tested)
Emissivity	0.95 fixed
Background compensation	20 °C fixed
Memory storage	Approximately 100 images (internal)
File format	Non-radiometric .is2

General specifications
Battery type	Rechargeable lithium ion battery (charge time: 4.5 hours)
Operating temperature	-10 °C to 50 °C (14 °F to 122 °F)
Storage temperature	-20 ºC to 60 ºC (-4 °F to 140 °F)
Relative humidity	0% to 90% (0 °C to 35 °C) (32 °F to 95 °F) 0% to 75% (35 °C to 40 °C) (95 °F to 104 °F) 0% to 45% (40 °C to 50 °C) (104 °F to 122 °F)
Altitude	2,000 meters (6,561 feet)
Temperature coefficient	Add 0.1 x specified accuracy for each °C above 28 °C or below 18 °C (°F above 82 °F or below 64° F)
Ingress Protection	(IP) IP40 (non-operating)
Wireless frequency	2.4 GHz ISM Band, 20 meter range
Certifications	CE, CSA, FCC
Safety compliance	IEC 61010-1: Pollution degree 2; IEC 61010-2-033: CAT III 1000 V/CAT IV 600 V
EMC	EN 61326-1:2012
Size	215.9 x 93.9 x 57.1 mm (8.5 x 3.7 x 2.25 in)
Weight	0.793 kg (1.75 lb)
Warranty	Limited three-year warranty

Models: Fluke 279 FC True-rms Thermal Multimeter

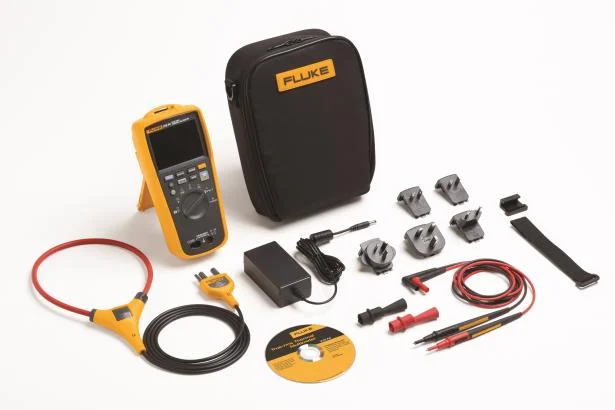

Fluke 279 FC/iFlex

Fluke 279 FC/iFlex

Includes:

279 FC TRMS Thermal Multimeter
45.72 cm (18 in) iFlex Flexible Current Probe
(1 pair) TL175 Test Leads
Rechargeable Lithium Ion Battery and Charger
Soft Carrying Case
Hanging strap

Fluke 279 FC I/B

Fluke 279 FC I/B

279 FC True-rms Thermal Multimeter
45.72 cm (18 in) iFlex Flexible Current Probe
(1 pair) TL175 Test Leads
(2) Rechargeable Lithium Ion Batteries and Charger
Soft Carrying Case
Hanging strap

Compatible accessories: Fluke 279 FC True-rms Thermal Multimeter
Batteries and chargers (2)
Fluke BC500 AC Power Charger
Fluke BP500 Lithium-ion Battery 3000 mAh
Test leads, probes, and clips (2)
Fluke TL220 SureGrip™ Industrial Test Lead Set
Fluke TL175 TwistGuard™ Test Leads
Cases and holsters (1)
Fluke C25 Large Soft Case for DMMs
