Fluke 750P Series Pressure Modules
Key Features
- A complete family of precision pressure modules
- Covers workloads from 1 inH20 to 10,000 psi (2.5 mBar to 690 bar)
- 8 intrinsically safe models for use with Fluke 718EX or 725EX
- Reduce errors by digitally sending measurements to calibrators
- Precision measurements with reference uncertainties up to 0.01%
- Differential modules
- Gage modules
- High pressure modules
- Absolute modules
- Vacuum modules
- Dual range modules
- Reference modules

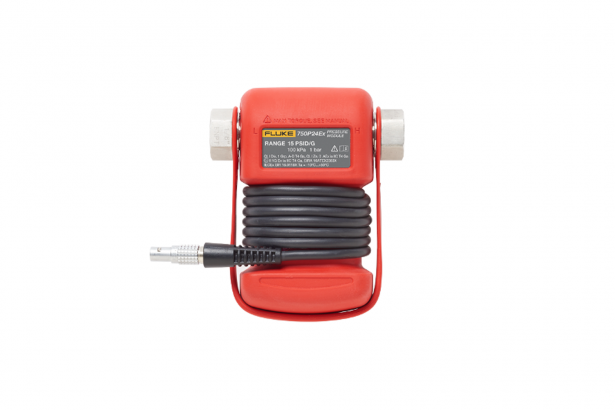

- Intrinsically safe modules
- Fluke 750P00
- Fluke 750P02
- Fluke 750PD2
- Fluke 750P03
- Fluke 750P05
- Fluke 750P06
- Fluke 750P29
Fluke 750P Series Pressure Modules
Fluke 750P Series Pressure Modules will turn your Fluke multifunction calibrator into a full-fledged pressure calibrator. These flexible modules not only work with multifunction calibrators like the 725, 726 or 750 Series Calibrators but also extend the measurement range of Fluke pressure calibrators. Since the pressure modules are calibrated independently, they can be swapped from one calibrator to another without a loss of accuracy or traceability.
Measuring pressure with Fluke 750P Series Pressure modules is as easy as connecting the module to a pressure source or hand pump, connecting the pressure module cable to the calibrator and then applying pressure from the pressure source. At the touch of a button the measured pressure is displayed digitally on the calibrator in up to 11 different engineering units quickly giving you the data you need. And, with “no tools required” connectors you don’t even need to reach for a wrench to make connections.
When used with the 750 Series Documenting Process Calibrators pressure readings can even be date/time stamped and stored in documented calibration records for later retrieval. This saves time, eliminates errors, and supports compliance with quality standards and regulations.
A complete family of pressure modules
With over 50 pressure modules covering pressure calibration and measurement workloads from 1 inH20 to 10,000 psi (2.5 mBar to 690 bar) finding a model to meet the needs of your specific application is easier than ever. All modules include NPT, metric (BSP) and M20 adapters.
Choose from:
With more than 50 pressure modules to choose from, some of the more popular modules include:
Click the Models tab above for a full list of pressure modules.
Designed to go where you work
Pressure instruments are often installed in harsh, hard to reach locations, so you need test tools that handle rough service. 750P Series Pressure Modules feature a rugged protective boot that guards the module against shock and seals against dirt and dust, if you accidently drop them, there’s no need to worry. The 750P series modules are also specified across a broad temperature range. Though more accurate across a narrower temperature range if used indoors, these modules are designed and specified to deliver traceable pressure measurements in environments from -10 °C to +50 °C
| Differential Module Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750P00 | 0 to 1 inH2O (0 to 2.5 mBar) | 30X | Dry air | Dry air | |
| 750P3IN | 0 to 3 Inch H2O (0 to 7.5 mbar) | 10X | Dry air | Dry air | |
| 750P5IN | 0 to 5 Inch H2O (0 to 12.5 mbar) | 6X | Dry air | Dry air | |
| 750P017 | 0 to 10 inH2O (0 to 25 mBar) | 3X | Dry air | Dry air | |
| 750P02 | 0 to 1 psi (0 to 70 mBar) | 3X | Dry air | Dry air | |
| 750P22 | 0 to 1 psi (0 to 70 mBar) | 3X | 316 SS | Dry air | |
| 750P03 | 0 to 5 psi (0 to 350 mBar) | 3X | Dry air | Dry air | |
| 750P23 | 0 to 5 psi (0 to 350 mBar) | 4X | 316 SS | Dry air | |
| 750P04 | 0 to 15 psi (0 to 1 bar) | 3X | Dry air | Dry air | |
| 750P247 | 0 to 15 psi (0 to 1 bar) | 4X | 316 SS | Dry air | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750P00 | ±0.15% | ±0.3% | ±0.35% | ±0.25% | ±0.30% |
| 750P3IN | ±0.15% | ±0.3% | ±0.35% | ±0.25% | ±0.30% |
| 750P5IN | ±0.15% | ±0.3% | ±0.35% | ±0.25% | ±0.30% |
| 750P017 | ±0.1% | ±0.2% | ±0.3% | ±0.15% | ±0.25% |
| 750P02 | ±0.050% | ±0.1% | ±0.15% | ±0.075% | ±0.125% |
| 750P22 | ±0.050% | ±0.1% | ±0.15% | ±0.075% | ±0.125% |
| 750P03 | ±0.02% | ±0.04% | ±0.05% | ±0.035% | ±0.04% |
| 750P23 | ±0.02% | ±0.04% | ±0.05% | ±0.035% | ±0.04% |
| 750P04 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P247 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| Gage Module Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750P057 | 0 to 30 psi (0 to 2 bar) | 4X | 316 SS | N/A | |
| 750P067 | 0 to 100 psi (0 to 7 bar) | 4X | 316 SS | N/A | |
| 750P277 | 0 to 300 psi (0 to 20 bar) | 4X | 316 SS | N/A | |
| 750P07 | 0 to 500 psi (0 to 35 bar) | 4X | 316 SS | N/A | |
| 750P08 | 0 to 1000 psi (0 to 70 bar) | 3X | 316 SS | N/A | |
| 750P097 | 0 to 1500 psi (0 to 100 bar) | 3X | 316 SS | N/A | |
| 750P2000 | 0 to 2000 psi (0 to 140 bar) | 3X | 316 SS | N/A | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750P057 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P067 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P277 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P07 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P08 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P097 | ±0.0175% | ±0.035% | ± 0.045% | ±0.03% | ±0.04% |
| 750P2000 | ±0.0175% | ±0.035% | ± 0.045% | ±0.03% | ±0.04% |
| High Pressure Module Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750P29 | 0 to 3000 psi (0 to 200 bar) | 3X | 316 SS | N/A | |
| 750P30 | 0 to 5000 psi (0 to 340 bar) | 3X | 316 SS | N/A | |
| 750P31 | 0 to 10000 psi (0 to 700 bar) | 2X | 316 SS | N/A | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750P29 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P30 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| 750P31 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ±0.04% |
| Absolute Module Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750PA3 | 0 to 5 psia (0 to 350 mBar) | 4X | 316 SS | N/A | |
| 750PA47 | 0 to 15 psia (0 to 1 bar) | 4X | 316 SS | N/A | |
| 750PA5 | 0 to 30 psia (0 to 2 bar) | 4X | 316 SS | N/A | |
| 750PA6 | 0 to 100 psia (0 to 7 bar) | 4X | 316 SS | N/A | |
| 750PA27 | 0 to 300 psia (0 to 20 bar) | 4X | 316 SS | N/A | |
| 750PA7 | 0 to 500 psia (0 to 35 bar) | 4X | 316 SS | N/A | |
| 750PA8 | 0 to 1000 psia (0 to 70 bar) | 3X | 316 SS | N/A | |
| 750PA9 | 0 to 1500 psia (0 to 100 bar) | 3X | 316 SS | N/A | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750PA3 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA47 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA5 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA6 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA27 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA7 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA8 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PA9 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| Vacuum Module Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750PV3 | -5 psi (-350 mBar) | 4X | 316 SS | Dry air | |
| 750PV4 | -15 psi (-1 bar) | 4X | 316 SS | Dry air | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750PV3 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PV4 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| Dual Range Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750PD2 | -1 to 1 psi (-70 to 70 mBar) | 4X | 316 SS | Dry air | |
| 750PD3 | -5 to 5 psi (-350 to 350 mBar) | 4X | 316 SS | Dry air | |
| 750PD10 | -10 to 10 psi (-700 to 700 mBar) | 4X | 316 SS | Dry air | |
| 750PD4 | -15 to 15 psi (-1 to 1 bar) | 4X | 316 SS | Dry air | |
| 750PD5 | -15 to 30 psi (-1 to 2 bar) | 4X | 316 SS | — | |
| 750PD50 | -15 to 50 psi (-1 to 3.5 bar) | 4X | 316 SS | — | |
| 750PD6 | -15 to 100 psi (-1 to 7 bar) | 4X | 316 SS | — | |
| 750PD7 | -15 to 200 psi (-1 to 14 bar) | 4X | 316 SS | — | |
| 750PD27 | -15 to 300 psi (-1 to 20 bar) | 4X | 316 SS | — | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750PD2 | ±0.05% | ±0.1% | ±0.15% | ±0.075% | ±0.125% |
| 750PD3 | ±0.03% | ±0.06% | ±0.07% | ±0.05% | ±0.06% |
| 750PD10 | ±0.025% | ±0.05% | ±0.07% | ±0.04% | ±0.06% |
| 750PD4 | ±0.0175% | ±0.035% | ±0.045% | ±0.03% | ± 0.04% |
| 750PD5 | ± 0.0175% | ± 0.035% | ± 0.045% | ±0.03% | ± 0.04% |
| 750PD50 | ± 0.0175% | ± 0.035% | ± 0.045% | ±0.03% | ± 0.04% |
| 750PD6 | ± 0.0175% | ± 0.035% | ± 0.045% | ±0.03% | ± 0.04% |
| 750PD7 | ± 0.0175% | ± 0.035% | ± 0.045% | ±0.03% | ± 0.04% |
| 750PD27 | ± 0.0175% | ± 0.035% | ± 0.045% | ±0.03% | ± 0.04% |
| Reference Module Specifications | |||||
| Model | Parameter / range | Burst rating6 | Hi side media2 | Lo side media2 | |
| 750R045 | 0 to 15 psi (0 to 1 bar) | 3X | Dry air | Dry air | |
| 750R065 | 0 to 100 psi (0 to 7 bar) | 4X | 316 SS | — | |
| 750R27 | 0 to 300 psi (0 to 20 bar) | 4X | 316 SS | — | |
| 750R07 | 0 to 500 psi (0 to 35 bar) | 4X | 316 SS | — | |
| 750R085 | 0 to 1000 psi (0 to 70 bar) | 3X | 316 SS | — | |
| 750R29 | 0 to 3000 psi (0 to 200 bar) | 3X | 316 SS | — | |
| 750R30 | 0 to 5000 psi (0 to 340 bar) | 3X | 316 SS | — | |
| 750R315 | 0 to 10000 psi (0 to 700 bar) | 2X | 316 SS | — | |
| 750RD5 | -15 to 30 psi (-1 to 2 bar) | 4X | Dry air | — | |
| 750RD65 | -12 to 100 psi (-0.8 to 7 bar) | 4X | 316 SS | — | |
| 750RD27 | -12 to 300 psi (-0.8 to 20 bar) | 4X | 316 SS | — | |
| Model | Reference uncertainty4 | Total uncertainty 1-year (15-35°C) | Total uncertainty 1-year1 | Total uncertainty 6-month (15-35°C) | Total uncertainty 6-month1 |
| 750R045 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R065 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R27 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R07 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R085 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R29 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R30 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750R315 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750RD5 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750RD65 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 750RD27 | ±0.01% of FS | ±0.02% of FS | ±0.04% of FS | ±0.015% of FS | ±0.035% of FS |
| 1. Total uncertainty, % of full span for temperature range 0°C to +50°C, one year interval. Total uncertainty, 1.0% of full span for temperature range -10°C to 0°C, one year interval. No 6 month specification available for range -10°C to 0°C. 2. “Non-corrosive gasses” indicates Dry air or non-corrosive gas as compatible media. “Stainless Steel 316-SS” indicates media compatible with Type 316 Stainless Steel. 3. Specifications % of Full Span unless otherwise noted. 4. Reference Uncertainty is the specification for as left data for 24 hours. 5. When reference class modules are used with fixed resolution products (717, 718, 719 series, 725 and 726) calibrators add ±1 count to the overall accuracy specification. 6. Burst rating specification refers to the multiplier times full scale of the module for the rated burst pressure. 7. Intrinsically Safe pressure module available in this pressure range. | |||||
Fluke 750P Series Pressure Modules
Fluke 750P00
FLUKE-750P00 Pressure module, 0 TO 1 INCH H2O (0 TO 2.5 MBAR), (0 TO 0.25 KPA)
Includes:
- Pressure module
- Traceable calibration certificate
- Adapters
- Manual
Fluke 750P01
FLUKE-750P01 Pressure module, 0 TO 10 INCH H2O (0 TO 25 MBAR),(0 TO 2.5 KPA)
Fluke 750P02
FLUKE-750P02 Pressure module, 0 TO 1 psi (0 TO 70 MBAR), (0 TO 7 KPA)
Fluke 750P03
FLUKE-750P03 Pressure module, 0 TO 5 psi (0 TO 350 MBAR), (0 TO 35 KPA)
Fluke 750P04
FLUKE-750P04 Pressure module, 0 TO 15 psi (0 TO 1 BAR), (0 TO 100 KPA)
Fluke 750P07
FLUKE-750P07 Pressure module, 0 TO 500 psi (0 TO 35 BAR), (0 TO 3500 KPA)
Fluke 750P22
FLUKE-750P22 Pressure module, 0 TO 1 psi (0 TO 70 MBAR), (0 TO 7 KPA)
Fluke 750P23
FLUKE-750P23 Pressure module, 0 TO 5 psi (0 TO 350 MBAR), (0 TO 35 KPA)
Fluke 750P24
FLUKE-750P24 Pressure module, 0 TO 15 psi (0 TO 1 BAR), (0 TO 100 KPA)
Fluke 750P05
FLUKE-750P05 Pressure module, 0 TO 30 psi (0 TO 2 BAR), (0 TO 200 KPA)

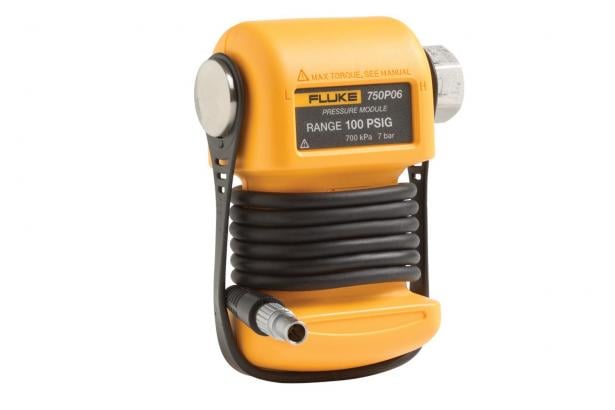

Fluke 750P06
FLUKE-750P06 Pressure module, 0 TO 100 psi (0 TO 7 BAR), (0 TO 700 KPA)
Fluke 750P08
FLUKE-750P08 Pressure module, 0 TO 1000 psi (0 TO 70 BAR), (0 TO 7000 KPA)
Fluke 750P09
FLUKE-750P09 Pressure module, 0 TO 1500 psi (0 TO 100 BAR), (0 TO 10 MPA)
Fluke 750P27
FLUKE-750P27 Pressure module, 0 TO 300 psi (0 TO 20 BAR), (0 TO 2000 KPA)
Fluke 750P2000
FLUKE-750P2000 Pressure module, 0 TO 2000 psi (0 TO 140 BAR), (0 TO 14 MPA)
Fluke 750P29
FLUKE-750P29 Pressure module, 0 TO 3000 psi (0 TO 200 BAR), (0 TO 20 MPA)
Fluke 750P30
FLUKE-750P30 Pressure module, 0 TO 5000 psi (0 TO 340 BAR), (0 TO 34 MPA)
Fluke 750P31
FLUKE-750P31 Pressure module, 0 TO 10000 psi (0 TO 700 BAR), (0 TO 70 MPA)
Fluke 750PA3
FLUKE-750PA3 Pressure module, 0 TO 5 psia (0 TO 350 MBAR), (0 TO 35 KPA)
Fluke 750PA4
FLUKE-750PA4 Pressure module, 0 TO 15 psia (0 TO 1 BAR), (0 TO 100 KPA)
Fluke 750PA5
FLUKE-750PA5 Pressure module, 0 TO 30 psia (0 TO 2 BAR), (0 TO 200 KPA)
Fluke 750PA6
FLUKE-750PA6 Pressure module, 0 TO 100 psia (0 TO 7 BAR), (0 TO 700 KPA)
Fluke 750PA7
FLUKE-750PA7 Pressure module, 0 TO 500 psia (0 TO 35 BAR), (0 TO 3500 KPA)
Fluke 750PA8
FLUKE-750PA8 Pressure module, 0 TO 1000 psia (0 TO 70 BAR), (0 TO 7000 KPA)
Fluke 750PA9
FLUKE-750PA9 Pressure module, 0 TO 1500 psia (0 TO 100 BAR), (0 TO 10 MPA)
Fluke 750PA27
FLUKE-750PA27 Pressure module, 0 TO 300 psia (0 TO 20 BAR), (0 TO 2000 KPA)
Fluke 750PV3
FLUKE-750PV3 Pressure module, -5 psi (-350 MBAR), (-35 KPA)
Fluke 750PV4
FLUKE-750PV4 Pressure module, -15 psi (-1 BAR), (-100 KPA)
Fluke 750PD2
FLUKE-750PD2 Pressure module, -1 TO 1 psi (-70 TO 70 MBAR), (-7 TO 7 KPA)
Fluke 750PD3
FLUKE-750PD3 Pressure module, -5 TO 5 psi (-350 TO 350 MBAR), (-35 TO 35 KPA)
Fluke 750PD4
FLUKE-750PD4 Pressure module, -15 TO 15 psi (-1 TO 1 BAR), (-100 TO 100 KPA)
Fluke 750PD5
FLUKE-750PD5 Pressure module, -15 TO 30 psi (-1 TO 2 BAR), (-100 TO 200 KPA)
Fluke 750PD6
FLUKE-750PD6 Pressure module, -15 TO 100 psi (-1 TO 7 BAR), (-100 TO 700 KPA)
Fluke 750PD7
FLUKE-750PD7 Pressure module, -15 TO 200 psi (-1 TO 14 BAR), (-100 TO 1400 KPA)
Fluke 750PD10
FLUKE-750PD10 Pressure module, -10 TO 10 psi (-0.7 TO 0.7 BAR), (-70 TO 70 KPA)
Fluke 750PD27
FLUKE-750PD27 Pressure module, -15 TO 300 psi (-1 TO 20 BAR), (-100 TO 2000 KPA)
Fluke 750PD50
FLUKE-750PD50 Pressure module, -15 TO 50 psi (-1 TO 3.5 BAR), (-100 TO 350 KPA)
Fluke 750R04
Fluke 750R04 Reference Pressure Module
0 psi to 15 psi (0 to 1 bar), (0 to 100 kPa)
Fluke 750R06
Fluke 750R06 Reference Pressure Module
0 psi to 100 psi (0 to 7 bar), (0 to 700 kPa)
Fluke 750R07
Fluke 750R07 Reference Pressure Module
0 psi to 500 psi (0 to 35 bar), (0 to 3500 kPa)
Fluke 750R08
Fluke 750R08 Reference Pressure Module
0 psi to 1000 psi (0 to 70 bar), (0 to 7000 kPa)
Fluke 750R27
Fluke 750R27 Reference Pressure Module
0 psi to 300 psi (0 to 20 bar), (0 to 2000 kPa)
Fluke 750R29
Fluke 750R29 Reference Pressure Module
0 psi to 3000 psi (0 to 200 bar), (0 to 20 MPa)
Fluke 750R30
Fluke 750R30 Reference Pressure Module
0 psi to 5000 psi (0 to 340 bar), (0 to 34 MPa)
Fluke 750R31
Fluke 750R31 Reference Pressure Module
0 psi to 10000 psi (0 to 700 bar), (0 to 70 MPa)
Fluke 750RD5
Fluke 750RD5 Reference Pressure Module
-15 psi to 30 psi (-1 to 2 bar), (-100 to 200 kPa)
Fluke 750RD6
Fluke 750RD6 Reference Pressure Module
-12 psi to 100 psi (-0.8 to 7 bar), (-80 to 700 kPa)
Fluke 750RD27
Fluke 750RD27 Reference Pressure Module
-12 psi to 300 psi (-0.8 to 20 bar), (-80 to 2000 kPa)
Fluke 750P3IN Differential Pressure Module
FLUKE-750P3IN Pressure module, 0 TO 3 INCH H2O (0 TO 7.5 MBAR)
Fluke 750P5IN Differential Pressure Module
FLUKE-750P5IN Pressure module, 0 TO 5 INCH H2O (0 TO 12.5 MBAR)
Manuals (6)
- 700PD7 | Statement of memory volatility
- 750P/750R | Instruction sheet
- 750P/750R | Instruction sheet supplement
- 750P/750R, 750PEx | Statement of memory volatility
- 750PEx | Instruction sheet
- Premium Pressure Accessory Kit | Quick reference guide
