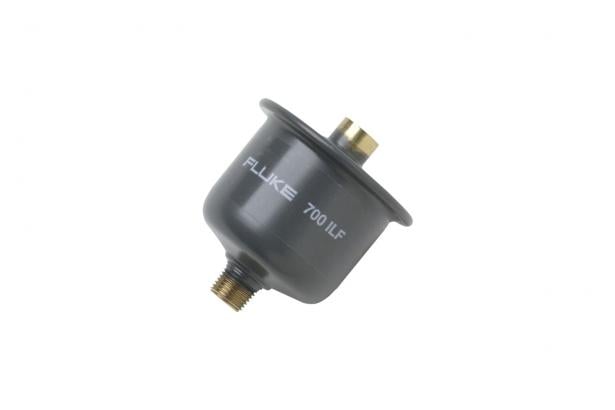

Fluke 700ILF In-Line Filter
Key Features
The Fluke 700ILF In-line Filter is specifically designed to trap fine particles from atmospheric air, compressed air, and instrument air. It is used with the Fluke 713, 717, or 718 Pressure Calibrators. It can also be used to absorb small quantities of liquid oil and water in droplet form.
Product overview: Fluke 700ILF In-Line Filter
The Fluke 700ILF can be used to isolate the calibrator from the incidental contract with fluids. Particularly useful with the 718 calibrator to help keep moisture or oils from contaminating the on-board pump.
| General and Technical Specifications | |
| Inlet fitting | 1/8 in brass female NPT |
| Outlet fitting | 1/8 in brass male NPT |
| Length | 2.125 in |
| Flange diameter | 1.875 in |
| Housing diameter | 1.560 in |
| Max pressure | 100 psi |
| Max pressure | 100 psi |
| Max flow | 10 SCFM |
| Burst pressure | 375 psi |
| Filtration | 1 micron |
Models: Fluke 700ILF In-Line Filter
Fluke 700ILF
- In-line Filter
