Key Features

Unique Features

Unique Features:

• Versiv enables users to accomplish more than ever before with a cable tester, accelerating every step of the testing process
• ProjX management system eases tasks from the initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time.
• Taptive user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels.
• LinkWare management software provides unmatched analysis of test results and professional test reports

Standards

Standards:

• Allows combined OLTS Tier 1 (basic), OTDR Tier 2 (extended) certification, end-face inspection and reporting when paired with OptiFiber™ Pro OTDR
• Set reference wizard verifies test reference cords (TRCs) per ISO/IEC 14763-3 and eliminates negative loss errors
• Encircled Flux-compliant optical launch conditions required by ANSI/TIA and ISO/IEC standards
• Double-ended fiber optic end-face certification to IEC 61300-3-35

Performance

Performance:

• Three-second Autotest – (four times faster than legacy testers) includes optical loss measurement of two fibers at two wavelengths with distance measurement and optical loss budget calculation
• Provides automatic Pass/Fail analysis to industry standards or custom test limits
• Identifies incorrect test procedures resulting in negative loss results
• Double-ended Pass/Fail certification of fiber optic connector end-faces
• Graphical indication of problem areas on fiber end-faces due to contamination, pits, chips, and scratches
• Interchangeable power meter adapters are available for all typical connector types (SC, ST, LC, and FC) to enable the most accurate 1-jumper reference method

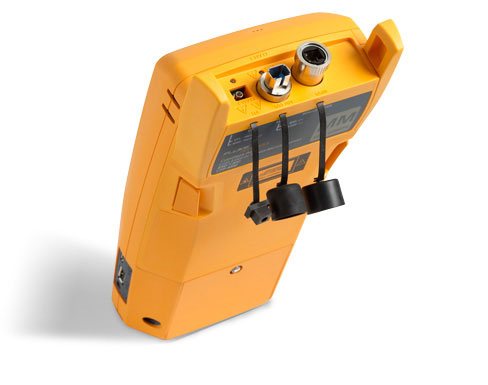

• Built-in visual fault locator for basic troubleshooting and polarity determination
• Dual wavelength measurement capability on a single fiber allows the tester to be used in applications that require only one fiber link.
• Compliant with TIA-526-14-B and IEC 61280-4-1 Encircled Flux requirements with no additional equipment or procedures
• Integrated Wi-Fi allows you to easily upload results to LinkWare Live

ProjX™ Management System

Versiv’s ProjX™ System manages jobs from set-up to systems acceptance, ensuring that all tests are completed correctly. Enter the testing details for a job once, and ProjX stores them in a project file with a name the whole team can understand. Change modules or jobs without having to re-enter details. Support multiple testers on the same job by sharing project files via USB sticks or email.

Set up or view test limits, fiber types, and testing attributes.		View multiple projects.		Select a project icon to see specific detail.

Taptive™ User Interface

Versiv is driven by Taptive, the most advanced user interface for a field tester. With a gestured-based interface, technicians and project managers of all skill levels can eliminate costly errors and do more faster with fewer key strokes, set-up wizards, swiping, pinch to zoom, and access to more data right at their fingertips.

Taptive user interface simplifies set-up, eliminates errors and speeds up troubleshooting.

LinkWare™ PC Cable Test Management Software

Managing test results and creating professional test reports is the legacy of LinkWare, giving Project Managers full capabilities to monitor workflow and consolidate test results.

LinkWare PC pulls data together into a single report that is easy for customers to understand, showcasing quality and workmanship. LinkWare Stats feature in LinkWare PC, provides automated statistical reports that turns test results into charts to reveal performance. The report even summarizes your entire cabling and fiber infrastructure in one compact, graphical format, so it is easy to verify margins and anomalies.

Encircled Flux and Test Reference Cords Tested.

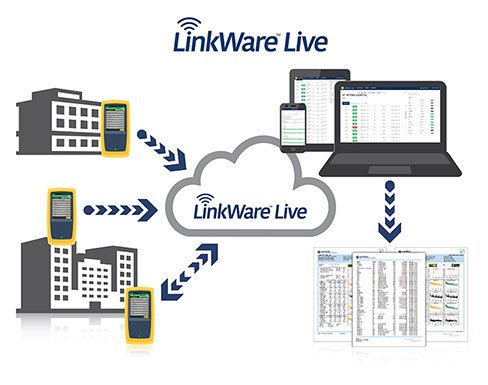

LinkWare™ Live Test Results Management Service

LinkWare Live is a cloud-based service that lets you manage certification jobs anytime, anywhere, with anyone on any device.  With LinkWare Live, you can

• Keep track of every test on every job.  Get an overview of every project from any smart device. Drill down to each individual test. Instantly receive notification of incorrect test settings or cable IDs.
• Get it right the first time. Define cable IDs and test settings from your PC or tablet. Then send them to the testers or Brother printers at the job site for mistake-free testing and labeling.
• Keep your testers up to date. Standards can change without notice, and an out-of-date test report can mean hours of re-testing. LinkWare Live automatically ensures your testers are running the latest.
• Stop wasting time and gas-driving testers back to the office. Integrated Wi-Fi allows you to upload your test results straight from the job site to LinkWare Live. Then download them automatically to the right job for fast report generation with LinkWare PC.
• Avoid Project Delays. Track the last used location and monitor the status of all testers to ensure they are always calibrated and running the latest firmware*
• Supports all Versiv models: DSX CableAnalyzer Series, CertiFiber Pro, OptiFiber Pro, and the FI-7000.

Double Ended Fiber Optic End-face Certification

Fiber optic connector end-face contamination is a leading cause of fiber failures. Dirt and contaminants cause insertion loss and back-reflection that inhibit optical transmission and cause havoc with transceivers. Fiber loss testing can expose this problem, but in many cases, dirty connections make fiber testing time-consuming and inaccurate. Since dirt can be an issue before, during, or after fiber optic certification testing, and migrate from one fiber optic connector end-face to another upon mating, both sides of any connection must always be cleaned and inspected.

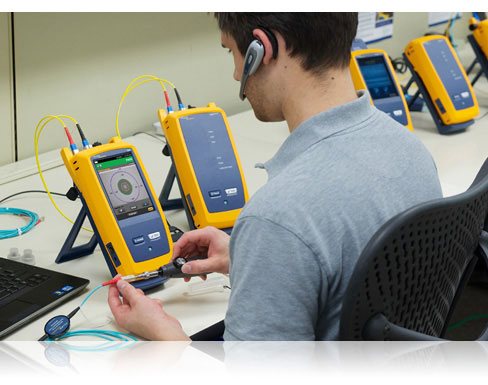

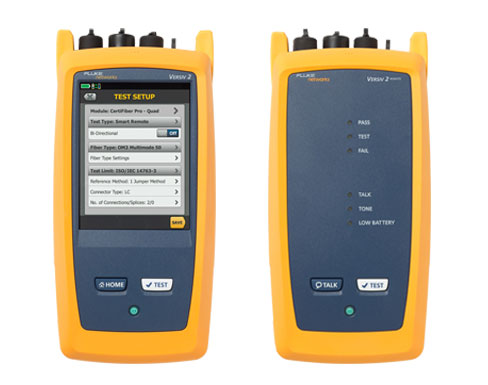

CertiFiber Pro Optical Loss Test Set (OLTS) provides double-ended fiber optic inspection capability through the use of 2 Versiv Main units. One unit acts as the normal CertiFiber Pro main and the 2nd unit functions as a Remote unit. Using a Main unit as a Remote provides a touchscreen interface at the Remote end giving you the ability to visually inspect fiber end-faces!

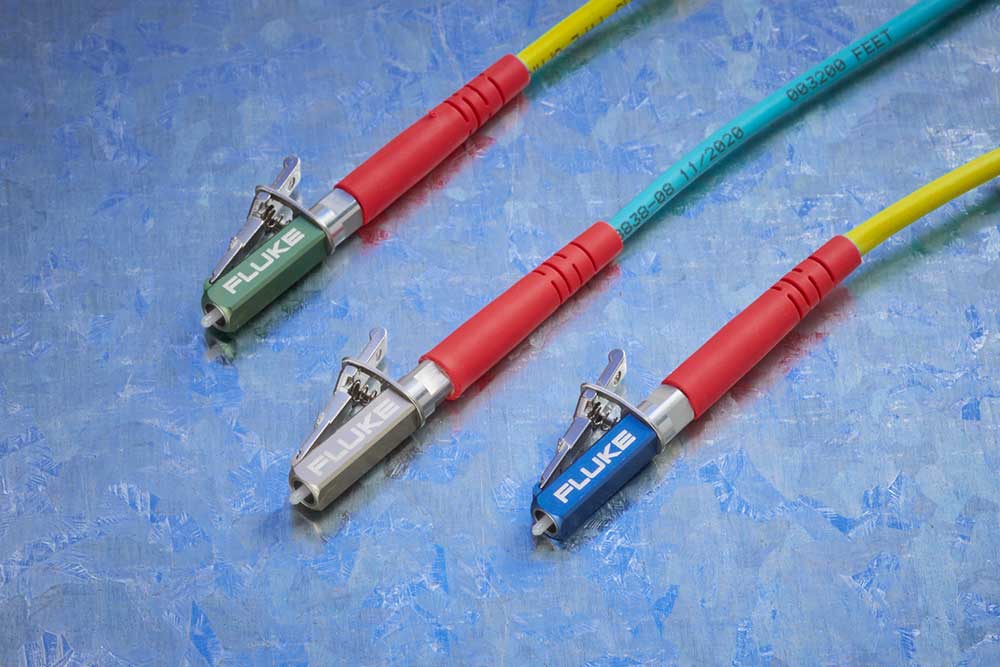

CertiFiber Pro’s double-ended fiber optic inspection capability allows you to inspect and certify fiber optic connector end-faces at both ends of your fiber link in less than a second so you can get your job done the first time. This double-ended fiber optic inspection capability provides automated PASS/FAIL certificationFluke Networks Test Reference Cords and Launch Fibers with LC connectors feature our unique metal latch design. Traditional LC connectors use a single-piece plastic design that flexes the latching mechanism each time the connector is inserted and removed and eventually breaks, making them unsuitable for repeated use in testing. The Fluke Networks Metal LC latching system uses a multi-piece metal design with a spring located between the latch and connector body. Since this latch is not part of the body and does not flex, the life of the latching mechanism is greatly improved, thereby extending the life of the LC connector and therefore the TRCs and launch cords.

The Metal LC connector is compliant with IEC 61754-20 and TIA-604-10B interpretability standards. That latch has also been tested for up to 10,000 insertions with no degradation in performance and passes all Telecordia GR-326-CORE durability tests including thermal, humidity, vibration, flex, impact, and salt spray. While the connector itself is the most rugged available, the glass fiber end face is still susceptible to damage, so it’s important to inspect the end face to make sure it’s contaminant-free and to properly clean it if necessary.

and takes the guesswork out of fiber inspection so anyone can be a fiber expert.

Rugged Metal LC Connectors
