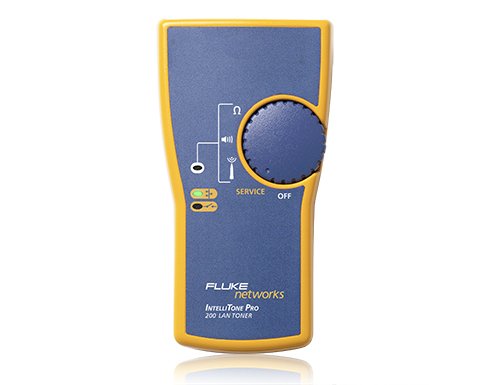

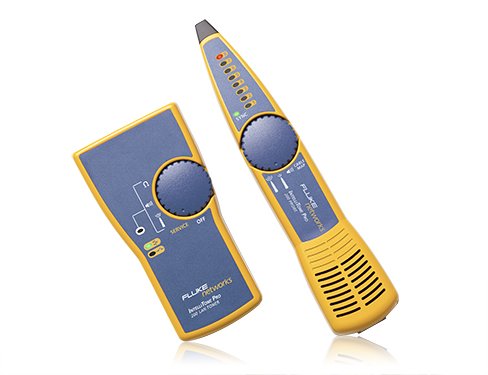

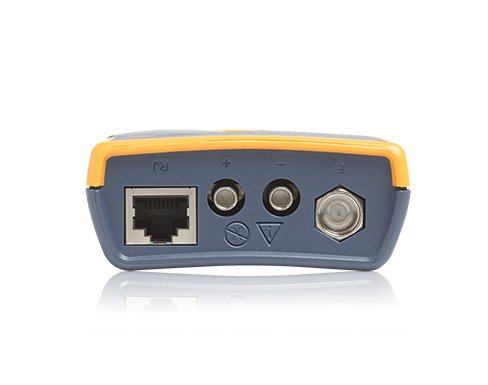

IntelliTone™ Pro 200 LAN Toner, Tracer and Probe
Key Features
Digital vs Analog
Only IntelliTone™ Pro Toners and Probes offer a powerful combination of digital and analog technologies to resolve common infrastructure problems that arise during the installation, maintenance, and changing of your network.
Digital and analog toning in one tool.
Today’s media networks are more diverse than ever. Most buildings have a combination of telephone, twisted-pair data, coax, and security/alarm wiring. Verifying proper routing and termination of this diverse set of cabling types requires tools optimized for different frequencies, connector types, and work environments. Until now, no single tool has combined the right technologies to operate across all copper media types, and in all environments. IntelliTone Pro changes that by combining cutting-edge digital and analog signaling to locate and verify virtually any copper cable, regardless of application or environment.
When to use digital
IntelliTone Pro’s digital encoded signal should primarily be used on high-grade data cabling (Cat 5e/6/6a), and in active network environments. It operates at a high frequency to match the higher-frequency data the cable plant is designed to carry. This allows the tone to overcome competing data signals and aggressive low-frequency terminations of Ethernet switches. That means LAN cabling technicians can quickly zero in on the right cable during installations or troubleshooting.
Digital toning is especially helpful once the cable has been located as it displays a cable wiremap and checks for shorts, opens, and miswires. The IntelliTone Pro 200 probe has an RJ45 input port and CableMap feature, allowing it to be plugged directly into a patch panel or wall port. The benefit of this wiremap test is two-fold. It eliminates the need for both a toner to a wiremapper, and provides 100% confirmation that the right cable has been located.
When to use analog

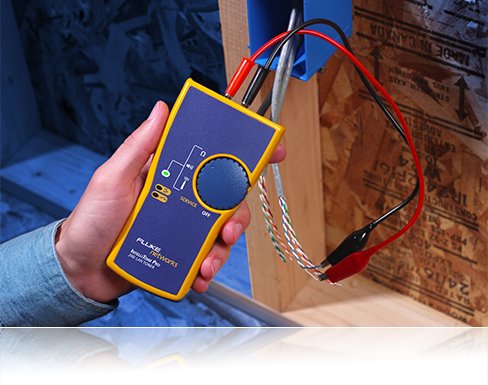

IntelliTone Pro’s SmartTone analog toning can be used on voice-grade cabling (Cat 3 and below), as well as coax, security/alarm, and speaker wiring. These cables are optimized for lower-frequency transmissions, and therefore are more easily isolated with a low-frequency tone. It should also be used in areas with relatively low interference from electronic devices. In high-interference environments, digital may still be a better choice.
SmartTone analog toning eliminates frustrating guesswork in locating individual wire pairs during installations. The SmartTone analog signal will change ‘songs’ each time the pair under test is shorted together. This provides telecom technicians a decisive way to identify individual wire pairs before punching them down on a jack or a block, or when diagnosing voice transmission problems.
Locate and Isolate Cabling
Isolate Terminated Cables
The IntelliTone™ Pro Toner uses the unique properties of twisted pair cabling to create a balanced signal that minimizes the effect of signal bleed. The smart digital signal processing in the IntelliTone™ Pro Probe clearly identifies this signal with audio and LED visual indicators, allowing you to rapidly isolate the correct cable from a bundle or on a patch panel. IntelliTone™ eliminates hours of cable confusion—and you can count on getting it right the first time.
Isolate Individual Wire Pairs
With traditional analog toners and probes, isolating individual wire pairs precisely can be almost impossible because of signal bleed between pairs. As a result, wire pairs are often routed and terminated incorrectly the first time. Redoing incorrect terminations or pulling new wiring wastes tremendous amounts of time and money. IntelliTone Pro’s SmartTone analog technology cuts out the guesswork and improves accuracy by providing definitive confirmation when the pair under test is located. Just short the pair under test, and the audible tone will change its cadence. The difference is dramatic.
Verify Cable Continuity
Eliminate callbacks during cabling moves, adds, and changes with the powerful diagnostic capabilities of IntelliTone. The IntelliTone Pro 200 Probe features a CABLEMAP capability that identifies common cable miswires in twisted pair cabling. IntelliTone technology automates the testing of each conductor for end-to-end continuity; LED lights and tones clearly indicate miswires such as opens, shorts or reversed pairs.
Tone Live Networks
Modern network devices use aggressive termination schemes for cables connected to their ports. While this termination reduces noise and crosstalk in the cable, it can also absorb an analog toner signal, making the connected cable impossible to detect with an analog audio probe. The result is that locating an unlabeled network can take hours with analog technology. Unlike analog signals, the IntelliTone digital signal stays strong despite common mode termination. The IntelliTone Pro Toner automates toning individual cable conductors, making it quick, efficient, and safe to locate cables on active networks.

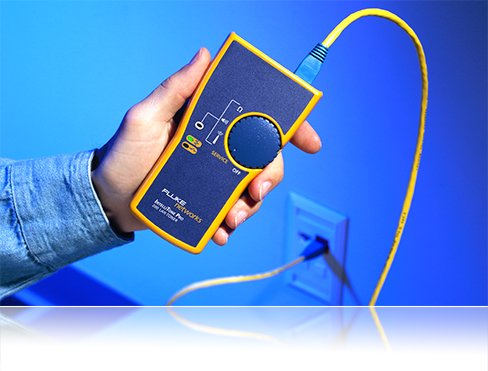

Verify Ethernet Service
Perform moves, adds, and changes with the powerful diagnostic capabilities of the IntelliTone Pro 200 Toner & Probe
Toning - IntelliTone makes it easy to quickly locate the cable in the equipment closet when performing moves, adds, and changes. Unconnected cables can be quickly isolated in the presence of a bleed.

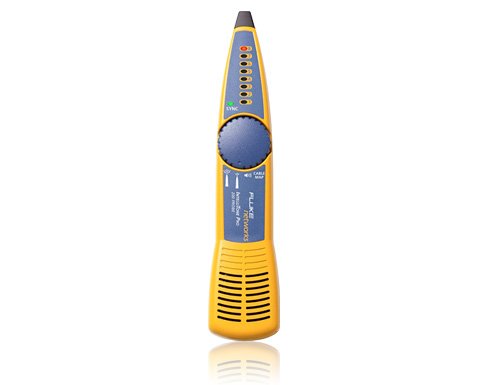

Cablemap - The IntelliTone Pro 200 Probe features a CABLEMAP capability that identifies common cable miswires in twisted pair cabling. Complete per-pin verification of TIA568 wiring identifies the exact wire that is open, shorted, or miswired. LED lights and distinctive tones clearly indicate miswires. The built-in Cablemap feature eliminates the need to carry separate tools or return to the far end to replace the toner with a mapper. The IntelliTone Pro 200 Kit is the all-in-one tool to locate and map Category 5 cabling even when plugged into a switch, and verify link service after moves, adds, and changes.
Verify Ethernet Service - Is the link pulse correct, reversed due to a swap cable of uplink port, or MDIX capable? Identify active Ethernet services present at the office wallplate. LED lights clearly indicate the presence of normal, reversed or MDIX Ethernet link connectivity.

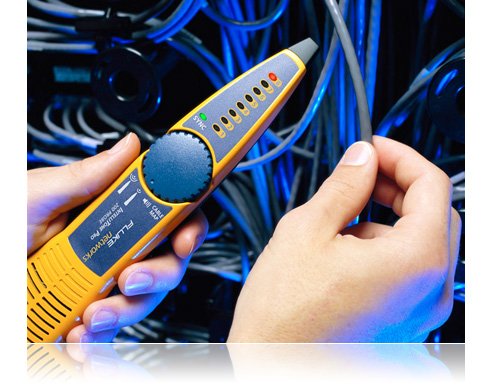

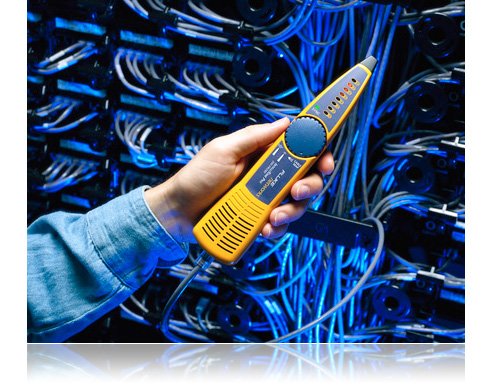

Get advanced vision for tracing and locating network cables more effectively at patch panels, switches, termination blocks, or hidden within bundles. Our new IntelliTone Pro 200 LAN Toner and Probe Kits find the cables others can't.
The IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks is the first network cable toner tracer and Proto offers digital and analog signaling all in one network toner and probe. That means it’s equipped with the most powerful cable tracing and location technologies for any work environment. Use digital mode to trace and locate data cabling safely and effectively on active networks. Use analog mode to isolate individual wire pairs, and trace voice, audio, and video cabling.
The IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks gives you superior vision for tracing and locating cables hidden in floors, ceilings, walls, and in bundles. This network cable toner and probe's breakthrough digital technology makes it the first tool to tone and trace safely and effectively on active networks.
| Specifications for the TS100 PRO | |
| Specifications for the TS100 PRO | |
| Maximum Length | 8,000 feet (2,438 meters) on certain cable types, 4,000 feet (1,220 meters) on most cable types, and 500 feet (152 meters) on cables with high loss. The tester shows -Err if the cable is too long to be correctly measured. |
| Representative Maximum Cable Length | 8,000 feet (2,438 meters): CAT-3 Twisted Pair |
| 8,000 feet (2,438 meters): CAT-5 Twisted Pair | |
| 6,000 feet (1,830 meters): 12/2 AC Wire | |
| 3,000 feet (900 meters): RG-6/U TV Coax | |
| 1,500 feet (457 meters): RG-174/U Coax | |
| Minimum Length | No minimum length (can read a bridge tap at 0 feet/meters). Minimum non-zero reading is 2 feet or 1 meter. |
| Length Accuracy | ±2 feet (±0.6 m) for cables less than 10 feet (3 m) |
| ±5 feet (±2 m) for cables longer than 10 feet (3 m) and shorter than 200 feet (60 m) | |
| +/-3%+/-5 feet (±2 m) for cables longer than 200 feet (60 m) | |
| Distance to Bridge Tap | 0 feet to 3,200 feet (975 meters) |
| Minimum Length of Bridge Tap | 10% of the distance to the bridge tap. Dependent on the cable characteristics. |
| Measurement Rate | Maximum of 4 complete measurements per second, decreasing to 2 seconds per measurement based on cable size and uniformity. |
| VOP | Adjustable from 20 to 99, saved in flash memory. |
| Test Technology | Time Domain Reflectometry (TDR) with 100 Ω drive impedance, 6v maximum pulse height. |
| Cable Type | Virtually all two or more conductor cables. |
| Power | 4 AA alkaline batteries. |
| Reverse Battery Protection | No damage to the tester will occur if the batteries are installed backwards. |
| Battery Life | 35 hours (typical) |
| Low Battery Indication | LED display alternates between LO and bAtt when the battery voltage falls below 4.5v. |
| Maximum Output Voltage | 4 voltage peak |
| Maximum Isolation Voltage | 250 volts RMS |
| Voltage Measurements | Range: 0 volts AC to 115 volts AC; 0 volts DC to ±150 volts DC |
| Accuracy: AC: +/-1%+/-2 volts (45 Hz to 65 Hz); DC: +/-1%+/-2 volts DC | |
| High Voltage Detection | AC voltage detected to 115 volts; DC voltage detected to ±150 volts. |
| AC voltage ≥90 volts or DC voltage ≥100 volts causes high voltage warnings to show on the display | |
| SmartTone® (5-tones) Range | 7,000 feet (2,134 meters) |
| Toner Range | 52,800 feet (16,093 meters) |
| Tone Injection | Approximately 1 kHz at an amplitude of 80% of battery voltage. Variable frequency and cadence. Tone characteristics change as cable condition changes to “normal-open” from any other condition. |
| Impedance Range | 35 Ω to 330 Ω with auto-compensation within this range. Cables with impedances outside this range will not be properly tested and may produce erratic or incorrect readings. |
| Temperature Range | Operating: 32°F to 104°F (0°C to 40°C) |
| Storage: 32°F to 131°F (0°C to 55°C) | |
| Humidity | Operating: 20% to 80% relative humidity |
| Storage: 0% to 100% relative humidity | |
| Operating Humidity | 80% maximum at 86°F (30°C ) |
| 50% maximum at 104°F (40°C ) | |
| Operating Altitude | 9,843 ft max (3,000 m max) |
| Weight | 1 lb (454 grams) |
| Dimensions | 7.4 in x 2.7 in x 1.4 in (18.8 cm x 6.9 cm x 3.6 cm) |
| Safety | IEC 61010-1:2010; N10140 |
| EMC: IEC/EN61326-1:2006 | |
| Certifications and Compliance | |
| Conforms to relevant European Union directives | |
| Conforms to relevant Australian standards | |
| IEC/EN61010-1 CAN/CSA-C22.2 No. 1010.1-92 + CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1 | |
Digital vs Analog
Only IntelliTone™ Pro Toners and Probes offer a powerful combination of digital and analog technologies to resolve common infrastructure problems that arise during the installation, maintenance, and changing of your network.
Digital and analog toning in one tool.
Today’s media networks are more diverse than ever. Most buildings have a combination of telephone, twisted-pair data, coax, and security/alarm wiring. Verifying proper routing and termination of this diverse set of cabling types requires tools optimized for different frequencies, connector types, and work environments. Until now, no single tool has combined the right technologies to operate across all copper media types, and in all environments. IntelliTone Pro changes that by combining cutting-edge digital and analog signaling to locate and verify virtually any copper cable, regardless of application or environment.
When to use digital
IntelliTone Pro’s digital encoded signal should primarily be used on high-grade data cabling (Cat 5e/6/6a), and in active network environments. It operates at a high frequency to match the higher-frequency data the cable plant is designed to carry. This allows the tone to overcome competing data signals and aggressive low-frequency terminations of Ethernet switches. That means LAN cabling technicians can quickly zero in on the right cable during installations or troubleshooting.
Digital toning is especially helpful once the cable has been located as it displays a cable wiremap and checks for shorts, opens, and miswires. The IntelliTone Pro 200 probe has an RJ45 input port and CableMap feature, allowing it to be plugged directly into a patch panel or wall port. The benefit of this wiremap test is two-fold. It eliminates the need for both a toner to a wiremapper, and provides 100% confirmation that the right cable has been located.
When to use analog
IntelliTone Pro’s SmartTone analog toning can be used on voice-grade cabling (Cat 3 and below), as well as coax, security/alarm, and speaker wiring. These cables are optimized for lower-frequency transmissions, and therefore are more easily isolated with a low-frequency tone. It should also be used in areas with relatively low interference from electronic devices. In high-interference environments, digital may still be a better choice.
SmartTone analog toning eliminates frustrating guesswork in locating individual wire pairs during installations. The SmartTone analog signal will change ‘songs’ each time the pair under test is shorted together. This provides telecom technicians a decisive way to identify individual wire pairs before punching them down on a jack or a block, or when diagnosing voice transmission problems.
Locate and Isolate Cabling
Isolate Terminated Cables
The IntelliTone™ Pro Toner uses the unique properties of twisted pair cabling to create a balanced signal that minimizes the effect of signal bleed. The smart digital signal processing in the IntelliTone™ Pro Probe clearly identifies this signal with audio and LED visual indicators, allowing you to rapidly isolate the correct cable from a bundle or on a patch panel. IntelliTone™ eliminates hours of cable confusion—and you can count on getting it right the first time.
Isolate Individual Wire Pairs
With traditional analog toners and probes, isolating individual wire pairs precisely can be almost impossible because of signal bleed between pairs. As a result, wire pairs are often routed and terminated incorrectly the first time. Redoing incorrect terminations or pulling new wiring wastes tremendous amounts of time and money. IntelliTone Pro’s SmartTone analog technology cuts out the guesswork and improves accuracy by providing definitive confirmation when the pair under test is located. Just short the pair under test, and the audible tone will change its cadence. The difference is dramatic.
Verify Cable Continuity
Eliminate callbacks during cabling moves, adds and changes with the powerful diagnostic capabilities of IntelliTone. The IntelliTone Pro 200 Probe features a CABLEMAP capability that identifies common cable miswires in twisted pair cabling. IntelliTone technology automates the testing of each conductor for end-to-end continuity; LED lights and tones clearly indicate miswires such as opens, shorts or reversed pairs.
Tone Live Networks
Modern network devices use aggressive termination schemes for cables connected to their ports. While this termination reduces noise and crosstalk in the cable, it can also absorb an analog toner signal, making the connected cable impossible to detect with an analog audio probe. The result is that locating an unlabeled network can take hours with analog technology. Unlike analog signals, the IntelliTone digital signal stays strong despite common mode termination. And the IntelliTone Pro Toner automates toning individual cable conductors, making it quick, efficient and safe to locate cables on active networks.
Verify Ethernet Service
Perform moves, adds and changes with powerful diagnostic capabilities of the IntelliTone Pro 200 Toner & Probe
Toning - IntelliTone makes it easy to quickly locate the cable in the equipment closet when performing moves, adds and changes. Unconnected cable can be quickly isolated in the presence of bleed.
Cablemap - The IntelliTone Pro 200 Probe features a CABLEMAP capability that identifies common cable miswires in twisted pair cabling. Complete per-pin verification of TIA568 wiring identifies the exact wire that is open, shorted or miswired. LED lights and distinctive tones clearly indicate miswires. The built-in Cablemap feature eliminates the need to carry separate tools or returning to the far-end to replace the toner with a mapper. The IntelliTone Pro 200 Kit is the all-in-one tool to locate and map Category 5 cabling even when plugged into a switch, and verify link service after moves, adds and changes.
Verify Ethernet Service - Is the link pulse correct, reversed due to a swap cable of uplink port, or MDIX capable? Identify active Ethernet services present at the office wallplate. LED lights clearly indicate the presence of normal, reversed or MDIX Ethernet link connectivity.
Product Highlights
Digital network cable toner and probe trace and locate cables on the active network.
IntelliTone digital toning technology:
- Ends network cable location confusion, decisively rejects noise and false signals
- Network cable tracer locates cables on active networks, even when terminated at a switch
- Isolates cable and wiring within a bundle, despite cable bleed
- Confirms cable location, verifies cable continuity, and detects cable faults (opens, shorts, and reversed pairs) in one step
- Signal strength indicator LEDs so you can help identify one cable that is bundled with other cables
- The probe has a built-in pair tester to identify open, shorted, and crossed pairs
SmartTone® analog toning technology:
- Isolates individual wire pairs precisely by changing tone when shorted
- Effectively traces and locates voice, audio, and video cabling
