Fluke VPS510-R ScopeMeter® Compact Probe
Key Features
- Ideal for small electronics applications
- Compact size designed for lower voltage applications
- Double insulated, 300 V CAT III rated
- 10:1 voltage ratio and 500 MHz bandwidth
- Available in red, blue, grey, and green
Fluke VPS510-R ScopeMeter® Compact Probe
Use the Fluke VPS510-R (Red) Compact Voltage Probe with the Fluke 190 Series III and Series II Portable Oscilloscopes or with the MDA-500 Series Motor Drive Analyzers. These double insulated compact probes offer a 10:1 voltage ratio, and 500 MHz bandwidth making them ideal for small electronics applications. For industrial applications consider Fluke VPS410-II-R Voltage Probes or VPS421 Series High Voltage Probes.
| Specifications* | |
| Attenuation | 10:1 |
| Bandwidth | 500 MHz |
| Max. input voltage | CAT III 300 V |
| Max. voltage to ground | CAT III 300 V |
| Input Resistance | 10 MΩ |
| Input Capacitance | 11.5 ± 1 pF |
| Compensation range | 10...25 pF |
| Cable Length | 1.2 m (3.9 ft) |
| Safety | IEC / EN 61010-031 UL 61010-031 CSA C22.2 No. 1010.2.031 |
| Max. Altitude | 2000 m |
| Pollution Degree | 2 |
| Protection Class | II (double insulation) |
*Specification of probe is valid only when used with Fluke ScopeMeter 190-xxx models and MDA-500 series.
Fluke VPS510-R ScopeMeter® Compact Probe
Fluke VPS510-R
ScopeMeter® Compact Probe for electronic applications
UPC: 095969601863

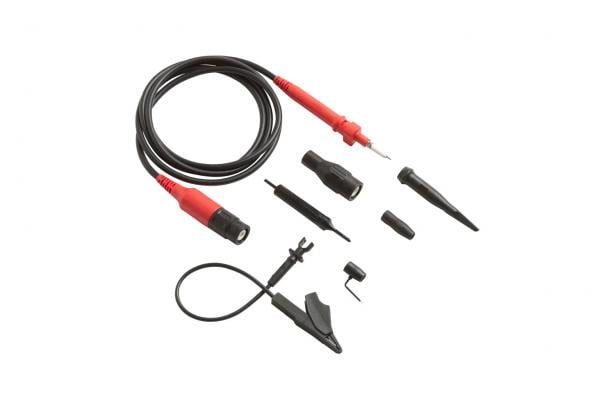

(1) Red voltage probe
(1) Black hook clip for probe tip
(1) Black ground lead with mini alligator clip
(1) Ground spring for probe tip
(1) Insulation sleeve for probe tip
(1) BNC to probe tip adapter
(1) Adjustment tool
