TS® 30 Series Test Sets
Key Features

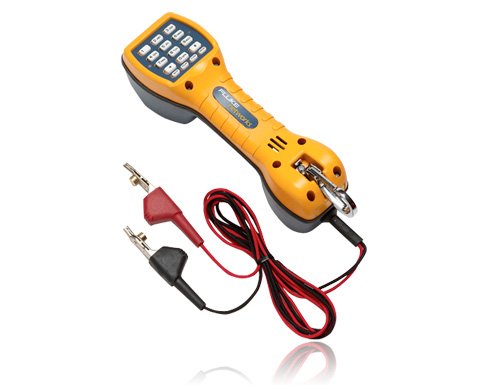

Rugged butt-in telephone test set at an affordable price
The TS®30 Test Set's top features include:
- High-impedance monitor mode
- Automatic regulation of speech levels
- Tone and pulse operation
- The last number redial in tone and pulse modes
- RainSafe™ weather protection for use in extreme weather conditions
- Hook flash button
- Fully functional with either line polarity
- Audible electronic ringer for callbacks
- High current and over-voltage protection
- High-impact polycarbonate case
- Field replaceable spring-loaded belt clip
- Hearing aid-compatible receiver
- Transmitter Mute switch
- Talk and Monitor modes
- Ergonomic design
- A lightweight unit is easily transported
Recognized as the industry standard for basic test sets, the TS30 Test Set provides superior quality at an affordable price. With its high impedance Monitor for DataSafe™ operation, technicians can clip onto a line in Monitor mode without disrupting existing traffic.
Fluke Networks’ unsurpassed RainSafe™ protection standards and DropSafe™ durability assure the test set will keep working even in the toughest environments. Solid weatherproofing provides enhanced resistance to severe weather conditions.
| Electrical | |
| Return Loss | >14 dB (ref 600 Ω) |
| Line Current Range | 15 mA to 120 mA |
| Resistance to Continuous Current (Talk Mode) | 275 Ω typical at 20 mA |
| Monitor Mode Impedance | >120,000 Ω 300 Hz to 3400 Hz |
| Pulse Dial Output | |
| Pulsing Rate | 10 pps pps |
| Open/Close Ratio | 60/40 |
| Inter-digit Interval | 800 ms %, -10% |
| Resistance During Pulse Open | > 200,000 Ω |
| Protection Against Alternating Current Overvoltage | The TS30 survives up to 250 Vrms across its test leads. |
| Peak Acoustic Output of the Receiver | <120 dBspl |
| DTMF Output Tone Frequencies Tone Frequency Error | per ITU-T Q.23 ±1.5% Maximum |
| Tone Level | |
| High Group Low Group | -4 dBm (into 600 Ω) -6 dBm (into 600 Ω) |
| High vs Low Tone Difference | 2dB +1db |
| Last Number Redial (Tone/Pulse) | |
| Memory Capacity Memory Retention | 23 digits 8-minutes nominal |
| Flash Duration | 600 ms ±100 ms |
| Ringer Loudness | > 70 dBA at 1 meter |
| Ringer Equivalent (REN) | 0.14 |
| Measurements | 10 in x 2.83 in x 3.34 in (25.5 cm x 7.2 cm x 8.5 cm) |
| Weight | 16.8 ounces (0.476 kg) |
| Environmental | |
| Temperature Operating Storage | -4 °F to +140 °F (-20°C to +60°C) |
| -40 °F to +151 °F (-40°C to +66°C) | |
| Relative Humidity | 5% to 95% |
| Safety | |
| Telecom Electrical | TNV-3 |
| Safety Classification | IP54 |
| Regulatory Standards Used | |
| Certifications and Compliance | |
| Notes: Specifications subject to change without notice. Legal requirements may exist regarding permission to connect equipment to a Telecom network opterated by a public network operator. | |
| Models | |
| 30800001 | TS30 test set with piercing pin clips |
| 30800009 | TS30 test set with ABN |
| 12001005 | TS120 test set with alligator clips (outside of N. America only) |
Product Highlights
The TS30 features the latest in telephone test set case design, at an affordable price.
- High-impedance DataSafeTM operation in monitor mode
- DropSafeTM reliability passes 20-foot drop test
- RainSafeTM protection in severe weather conditions
- Mute switch
- Last number redial
- Audible ringer for callbacks
