JackRapid™ Punchdown Tool

Model No :

Key Features

Terminate jacks 8 times faster

Strip cable jacket.
Determine the wiring scheme. Dress all 4 pairs (8 wires).

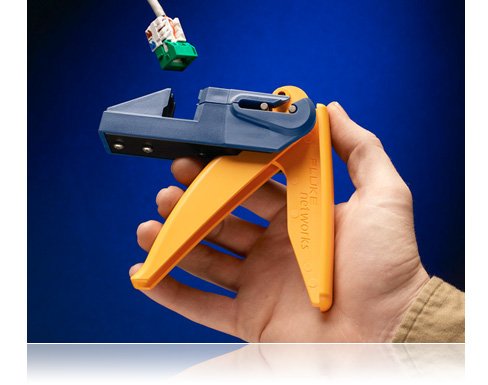

Insert jack in JackRapid front first with IDC slots facing blades of JackRapid.
Ensure the jack is completely and securely inserted in the jack holder bed with IDC slots facing the blades.

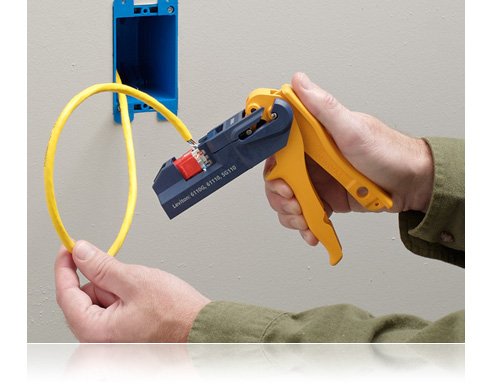

Pull the trigger completely and remove the excess wire before releasing the trigger.
Wires will be seated and cut for a solid termination.
Release the handle and remove the jack from the JackRapid tool. Visually verify proper termination.

Replaceable blade heads

JackRapid blade heads are specific to certain jack types--check the list below to see if JackRapid supports the jacks you use, and if not, look for a new JackRapid version in the future!

Description	JackRapid-Model Number
JackRapid Termination Tool Leviton Jacks Supports jack models: 41106, 41108 Cat3/5, 5G108 Cat5e	JR-LEV-1
JackRapid Blade Head Leviton Jacks Supports jack models: 41106, 41108 Cat3/5, 5G108 Cat5e	JR-LEV-1-H
JackRapid Termination Tool Leviton Jacks Supports jack models: 5G110 Cat 5e, 61110 Cat 6	JR-LEV-2
JackRapid Blade Head Leviton Jacks Supports jack models: 5G110 Cat 5e, 61110 Cat 6	JR-LEV-2-H
JackRapid Termination Tool SYSTIMAX Jacks Supports jack models: M1BH Cat 3, C5 Cat 5, MPS100E Cat 5e	JR-SYS-UNI-1
JackRapid Blade Head SYSTIMAX Jacks Supports jack models: M1BH Cat 3, C5 Cat 5, MPS100E Cat 5e	JR-SYS-UNI-1-H
JackRapid Termination Tool SYSTIMAX Jacks Supports jack models: MGS400 Cat 6, MGS500 Cat 6	JR-SYS-2
JackRapid Blade Head SYSTIMAX Jacks Supports jack models: MGS400 Cat 6, MGS500 Cat 6	JR-SYS-2-H
JackRapid Termination Tool ORTRONICS Jacks Supports jack models: TJ5E00, TJ600, TJ610	JR-ORT-2
JackRapid Blade Head ORTRONICS Jacks Supports jack models: TJ5E00, TJ600, TJ610	JR-ORT-2-H
JackRapid Termination Tool ADC Jacks Supports jack models: KM8, CopperTen	JR-ADC-2
JackRapid Blade Head ADC Jacks Supports jack models: C6a CopperTen® UTP RJ45 jack and the C6 TrueNet® KM8 UTP RJ45	JR-ADC-2-H
JackRapid Termination Tool Panduit Jacks Supports jack models: NK688M and NKP5E88M	JR-PAN-2
JackRapid Blade Head Panduit Jacks Supports jack models: NK688M and NKP5E88M	JR-PAN-2-H

Call Us Now

JackRapid™ is a patented jack termination tool that saves time and increases accuracy by seating and terminating all wires at once with a simple squeeze of the handle. JackRapid allows you to terminate jacks eight times faster than traditional impact tools - with an unmatched accuracy.

The patented jack termination tool seats and terminates all wires simultaneously. The built-in blade cuts off the excess wire after it is seated in the connector, eliminating the need for a secondary trim step.

Simple, one-handed operation, with an ergonomically designed handle, reduces hand fatigue. With JackRapid, you’ll never punch into the palm of your hand or through drywall again.

Models
JR-PAN-2	JACKRAPID TERMINATION TOOL (for Panduit NK6X88M, NK688M, NKP5E88M)
JR-SYS-2	JR-SYS-2,JACKRAPID TERMINATION TOOL(FOR SYSTIMAX MGS400, MGS600, MFP420, MFP520)
JR-ADC-2	JR-ADC-2, JACKRAPID TERMINATION TOOL (FOR ADC C6a CopperTen® UTP RJ45 jack and the C6 TrueNet® KM8 UTP RJ45)

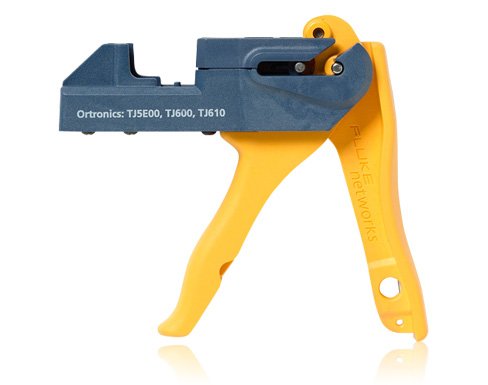

JR-ORT-2	JR-ORT-2,JACKRAPID TERMINATION TOOL (FOR ORTRONICS TJ5E00, TJ600, TJ610)

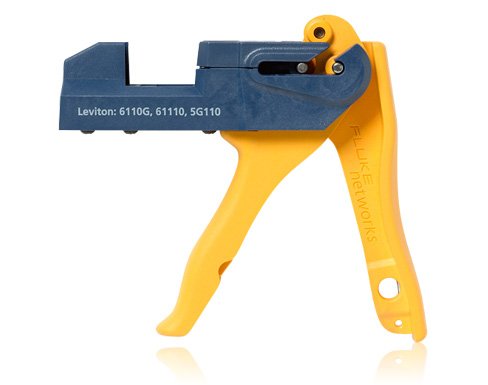

JR-LEV-2	JR-LEV-2,JACKRAPID TERMINATION TOOL (FOR LEVITON 61110, 5G110, 6110G)
JR-SYS-UNI-1	JR-SYS-UNI-1,JACKRAPID TERMINATION TOOL (MPS100E,C5,M1BH)

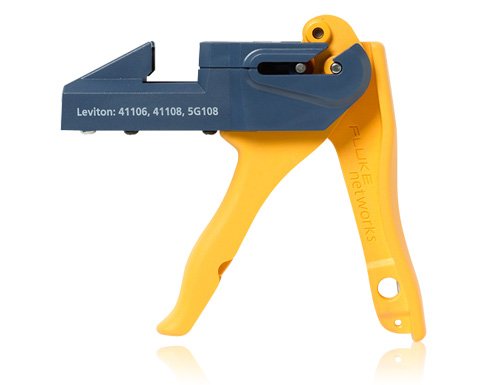

JR-LEV-1	JR-LEV-1,JACKRAPID TERMINATION TOOL (FOR LEVITON 41106, 41108, 5G108)
Accessories
JR-SYS-2-H	JR-SYS-2-H,JACKRAPID REPLACEMENT BLADE HEAD(FOR SYSTIMAX MGS400,MGS600, MFP420, MFP520 and Commscope UNJ10G)
JR-PAN-2-H	JACKRAPID REPLACEMENT BLADE HEAD(for Panduit NK688M, NKP5E88M)
JR-ERGOHANDLE	JR-ERGOHANDLE,JACKRAPID ERGONOMIC HANDLE
JR-ADC-2-H	JR-ADC-2-H, JACKRAPID REPLACEMENT BLADE HEAD (FOR ADC C6a CopperTen® UTP RJ45 jack and the C6 TrueNet® KM8 UTP RJ45)
JR-ORT-2-H	JR-ORT-2-H,JACKRAPID REPLACEMENT BLADE HEAD (FOR ORTRONICS TJ5E00,TJ600, TJ610)
JR-LEV-2-H	JR-LEV-2-H,JACKRAPID REPLACEMENT BLADE HEAD (FOR LEVITON 61110, 5G110, 6110G)
JR-SYS-UNI-1-H	JR-SYS-UNI-1-H,JACKRAPID REPLACEMENT BLADE HEAD (MPS100E,C5,M1BH&UNJ600/500/300)
JR-LEV-1-H	JR-LEV-1-H,JACKRAPID REPLACMENT BLADE HEAD (FOR LEVITON 41106, 41108, 5G108)
