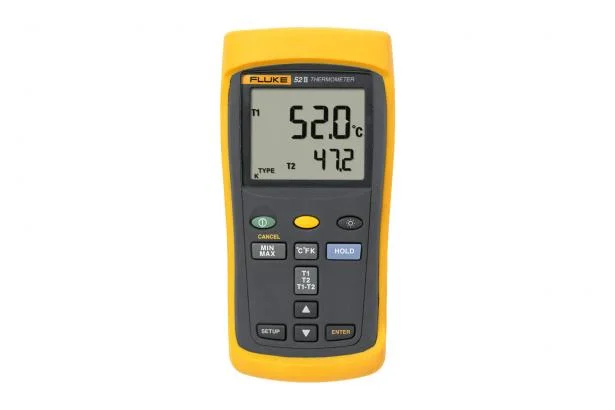

Fluke 52 II Dual Probe Digital Thermometer
Key Features
- Dual-input digital thermometer for lab, QA, process calibration, food safety and HVAC
- Shows any combination of T1, T2, T1-T2, plus MIN, MAX, or AVG on the large backlit dual display
- Features fast response and laboratory accuracy (0.05% + 0.3°C)
- Includes a relative time clock on MIN, MAX, and AVG to provide a time reference for major events
- Easy-to-access battery door that allows replacing the battery without breaking the calibration seal
- Comes with splash- and dust-resistant case protected by an impact-absorbing holster and a three-year warranty
- Powered by three, standard AA batteries -30-
- Features an electronic offset function that compensates for thermocouple errors to maximize overall accuracy
- Measures J, K, T, and E-type thermocouples
- Handles temperatures up to 900°C (1600°F)
- Presents results in °C, °F, or Kelvin (K)
- Provides a user-friendly front panel that is easy to set up and operate
- Offers sleep mode to increase battery life; 1000-hour battery life typical
- Offers optional ToolPak accessory to hang the thermometer from any metal object (with the rare earth magnet) or secure around a pipe (with hook-and-loop straps) for hands-free operation
Product overview: Fluke 52 II Dual Probe Digital Thermometer
The Fluke 52 II dual-input digital thermometer delivers fast response with laboratory accuracy (0.05% + 0.3°C). You can use the 52 II to measure two contact temperature inputs simultaneously on motors, insulation, breakers, pipes, corroded connections, liquids, and wires with industrial standard J, K, T, or E-type thermocouple temperature sensors. The user front panel and large, backlit display make it easy to view results from both inputs in multiple ways. And the sleep mode feature preserves battery life to give you a typical thousand hours of operation.
Other useful features:
Specifications: Fluke 52 II Dual Probe Digital Thermometer
| Specifications | ||
| Temperature accuracy | Above -100°C | J, K, T, E, and N-type: ±[0.05% + 0.3°C]1 |
| R and S-type: ±[0.05% + 0.4°C]1 | ||
| Below -100°C | J, K, E, and N-types: ±[0.20% + 0.3°C]1 | |
| T-type: ±[0.50% + 0.3°C] | ||
| Temperature | J-type | -210°C to 1200°C |
| K-type | -200°C to 1372°C | |
| T-type | -250°C to 400°C | |
| E-type | -150°C to 1000°C | |
| N-type | -200°C to 1300°C1 | |
| R and S-type | 0°C to 1767°C1 | |
| Temperature scale | ITS-90 | |
| Applicable standards | NIST-175 | |
| Display resolution | 0.1°C, 0.1 K < 1000 | |
| 1°C, 1 K ≥ 1000 | ||
| 1. Only the Fluke Models 53 II B and 54 II Bthermometers are capable of measuring N, R, and S-type thermocouples. | ||
| Environmental Specifications | ||
| Operating temperature | -10°C to 50°C | |
| Storage temperature | -40°C to 60°C | |
| Humidity (without condensation) | 0% to 90%; 0°C to 35°C | |
| 0% to 70%; 0°C to 50°C | ||
| Safety Specifications | ||
| Overvoltage category | CSA C22.2 No. 1010.1 1992; EN 61010 Amendments 1,2 | |
| Agency approvals | CE, CSA, TÜV (pending) | |
| Mechanical and General Specifications | ||
| Size (L x W x D) | 173 x 86 x 38 mm | |
| Weight | 400 g | |
| Batteries | 3 AA batteries; typical 1000-hour life | |
Models: Fluke 52 II Dual Probe Digital Thermometer
Fluke 52 II
Fluke 52 II Dual Input Digital Thermometer
Includes:
- Impact absorbing holster
- Two 80PK-1 beaded probe thermocouples
Manuals + resources: Fluke 52 II Dual Probe Digital Thermometer
Manuals (8)
51 & 52 Series II | Users Manual
53 & 54 Series II | Users Manual
53IIB/54IIB | Users Manual
51, 52, 50S and 50D | Statement of memory volatility
51, 52, 53, 54 (and Series II and Series IIB) | Statement of memory volatility
51-54 Series II | Getting Started
51-54 Series II | Service Manual
51-54 Series II | service manual supplement
Compatible accessories: Fluke 52 II Dual Probe Digital Thermometer
Cases and holsters (4)
Fluke C101 Hard Case
Fluke C50 Meter Case
Fluke CXT170 Extreme Case
Fluke TPAK ToolPak™ Magnetic Meter Hanger
Temperature probes (4)
Fluke 700TC2 Thermocouple Plug Kit 700TC2
Fluke 80PJ-EXT Extension Wire Kit
Fluke 80PK-EXT Extension Wire Kit
Fluke 80PT-EXT Extension Wire Kit
Adapters and cables (2)
Fluke 80CJ-M type J Male Mini-Connectors
Fluke 80CK-M type K Male Mini-Connectors
Probes (8)
Fluke 80PK-1 Bead Probe
Fluke 80PK-22 SureGrip™ Immersion Temperature Probe
Fluke 80PK-24 SureGrip™ Air Temperature Probe
Fluke 80PK-25 SureGrip™ Piercing Temperature Probe
Fluke 80PK-26 SureGrip™ Tapered Temperature Probe
Fluke 80PK-27 SureGrip™ Industrial Surface Temperature Probe
Fluke 80PK-3A Surface Probe
Fluke 80PK-8 Pipe Clamp Temperature Probe
