Fluke 325 True RMS Clamp Meter

Model No :

Key Features

True-rms AC/DC current, voltage, temperature, frequency
Clamp meter, test leads, K-type thermocouple and soft case
Versatile tool performs most front-line measurement tasks

Call Us Now

Fluke 325 True RMS Clamp Meter

Troubleshoot problems safely and accurately
The Fluke 325 True-rms Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures:

DC current
DC voltage
Temperature
Frequency

You’ll carry fewer tools in your bag and get more work done.

Covers most problems you see day-in, day-out
The 325 gives you a strong combination of measurement functions, in a tool that is reliable, easy-to-use and affordable. This clamp meter offers True-rms AC voltage and current measurements on non-linear signals. Paired with the CAT III 600 V, CAT IV 300 V safety rating the clamp meter can also measure:

Measures AC/DC current up to 400 A through jaw
AC/DC voltage to 600 V using test leads
Measures frequency from 5 Hz to 500 Hz; resistance to 40 kΩ
Measures temperature from -10 °C to 400 °C with included K-type thermocouple
Min/Max function records important values

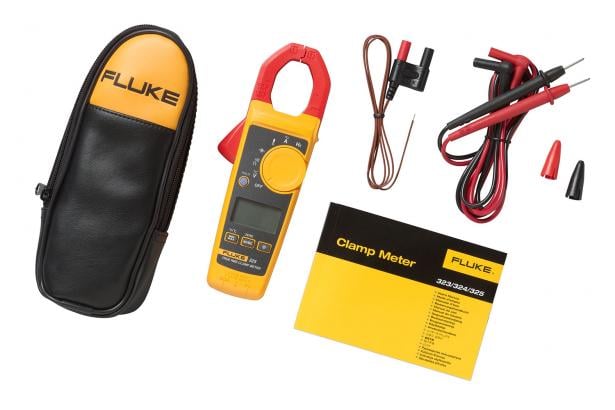

What's in the box:

Fluke 325 True-RMS Clamp Meter
TL75 Test Leads
Type K Thermocouple
Two AAA Batteries (Installed)
Soft Case

Specifications
AC current	Range	40.00 A / 400.0 A
	Accuracy	2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz)
DC current	Range	40.00 A / 400.0 A
	Accuracy	2% ± 5 digits
AC voltage	Range	600.0 V
	Accuracy	1.5% ± 5 digits
DC voltage	Range	600.0 V
	Accuracy	1.0% ± 5 digits
Resistance	Range	400.0 Ω / 4000 Ω / 40.00 kΩ
	Accuracy	1.0% ± 5 digits
Continuity		≤ 30 Ω
Capacitance		0 to 100.0 μF / 100μF to 1000 μF
Frequency		5.0 Hz to 500.0 Hz
AC response		True-RMS
Backlight		Yes
Data hold		Yes
Contact temperature		-10.0°C to 400.0°C (14.0°F to 752.0°F)
Min/Max		Yes
Size	H x W x D (mm)	207 x 75 x 34
	Max wire diameter	30 mm (600 MCM)
	Weight	283 g
Category rating		CAT III 600 V CAT IV 300 V
Warranty		Two-year
