Fluke 324 True-RMS Clamp Meter with Temperature & Capacitance

Model No :

Key Features

“It does everything a HVAC or Maintenance Tech would need. Out of 12 guys I work with 9 of them had the 324” - Thomas

Rugged, reliable basic True-RMS clamp meter
Measure AC current up to 400 A, AC/DC voltage to 600V
Measure resistance up to 4kΩ, continuity detection ≤ 30Ω
Additions from 323 Clamp: Temperature, Capacitance, Backlight

Call Us Now

Fluke 324 True-RMS Clamp Meter with Temperature & Capacitance

The Fluke 324 True-RMS Clamp Meter is a reliable, solid troubleshooting tool for commercial and residential electricians, featuring True-RMS measurements, a slim design for easy transport and use, and a large display for efficient troubleshooting. With the addition of Temperature and Capacitance, it has everything an HVAC technician could need.

Troubleshoot problems safely and accurately

CAT III 600 V, CAT IV 300 V safety rating
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Measures AC current up to 400 A
Measures AC/DC voltage to 600V
Measures resistance to 4kΩ with continuity detection ≤ 30Ω
Measures temperature from -10C to 400C
Measures capacitance to 1000μF
Backlight and hold function captures a reading on the display

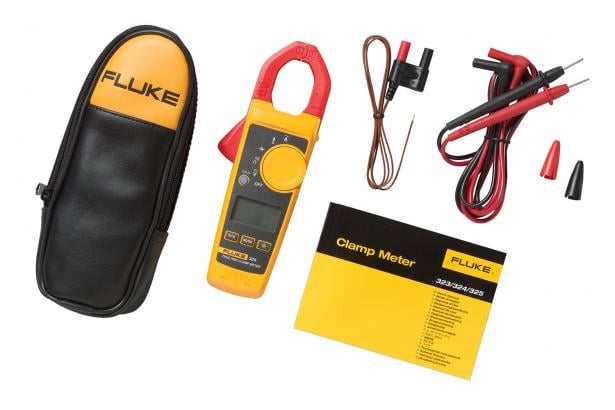

Comes with a two-year warranty and soft carrying case

Specifications
AC current	Range	40.00 A / 400.0 A
	Accuracy	1.5% ± 5 digits (45 Hz to 400 Hz) Note: Add 2% for position sensitivity
DC current	Range	-
	Accuracy	-
AC voltage	Range	600.0 V
	Accuracy	1.5% ± 5 digits
DC voltage	Range	600.0 V
	Accuracy	1.0% ± 5 digits
Resistance	Range	400.0 Ω/ 4000 Ω
	Accuracy	1.0% ± 5 digits
Continuity		≤ 30 Ω
Capacitance		0 to 100.0 μF / 100μF to 1000 μF
Frequency		-
AC response		True-RMS
Backlight		Yes
Data hold		Yes
Contact temperature		-10.0°C to 400.0°C (14.0°F to 752.0°F)
Min/Max		-
Size	H x W x D (mm)	207 x 75 x 34
	Max wire diameter	30 mm (600 MCM)
	Weight	208 g
Category rating		CAT III 600 V CAT IV 300 V
Warranty		Two-year
