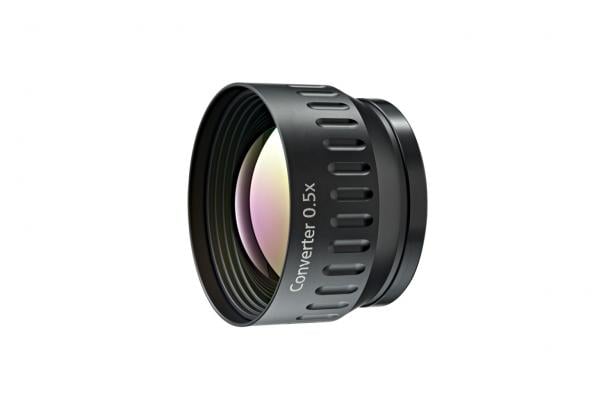

Macro 2 Infrared Lens
Close up macro lens (0.5x) for inspection and analysis of smaller subjects in research and development applications – compatible with TiX1000, TiX660 and TiX640 models.
Applications: Research and development, extremely small targets, PCB boards (heat dissipation), semiconductor substrates, and seals.
| General Characteristics | |
| Lens description | Close-up 0.5x |
| Focal distance | 30 mm |
| Focus | 47.4 mm |
| 1024 x 768 | |
| iFOV (°) | 34.3 x 25.3 mRad |
| Resolution | 32 µm |
| 640 x 480 | |
| iFOV (°) | 31.3 x 23.2 mRad |
| Resolution | 47 µm |
Macro 2 Infrared Lens
FLK-Xlens/Macro2
Close-up 0.5 times
Applications: Research and development, extremely small targets, PCB boards (heat dissipation), semiconductor substrates, and seals.
Compatible with TiX1000, TiX660 and TiX640 infrared cameras.
