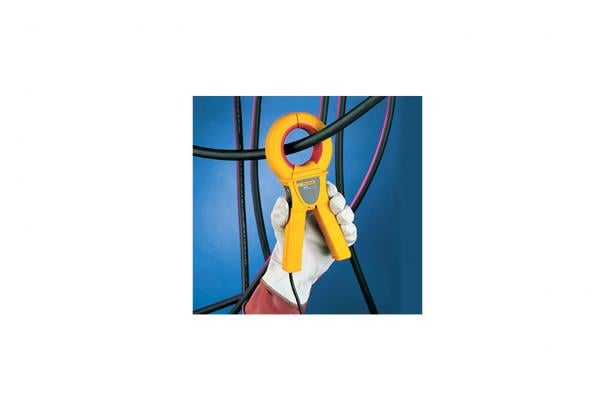

Fluke i800 AC Current Clamp Probe
Key Features
- Measures AC current from 100 mA to 800 A rms
- 30 Hz to 10 kHz frequency range
- CAT III 600 V rating
- Accepts up to 54 mm (2.1 in) diameter conductor size
- 1000:1 conversion factor for easy calculation
- Rugged positive action design
Fluke i800 AC Current Clamp Probe
The Fluke i800 AC Current Clamp is designed for use with multimeters, recorders, safety testers, etc., for accurate non-intrusive AC current measurement. It extends the current measuring capability of a digital multimeter to 800 A AC. It is compatible with digital mulitmeters that accepts shrouded 4 mm (0.16) banana plugs and has an AC milliamp range.
| Specifications | |
| Nominal current range | 800 A rms |
| Continuous current range | 100 mA to 800 A rms |
| Maximum non-destructive current | 1500 A rms (50/60 Hz) |
| Lowest measureable current | 100 mA |
| Basic accuracy | ±1% of reading |
| Useable frequency | 30 Hz - 10 kHz (-3dB) |
| Output level(s) | 1 mA / A |
| Safety Specifications | |
| Safety | CAT III 600 V |
| Maximum voltage | 600 V AC rms or DC |
| Mechanical and General Specifications | |
| Warranty | 1 year |
| Maximum conductor diameter | 54 mm (2.13 in) |
| Output cable length | 1.6 m (63 in) |
| Lead connector | Shrouded banana plugs |
