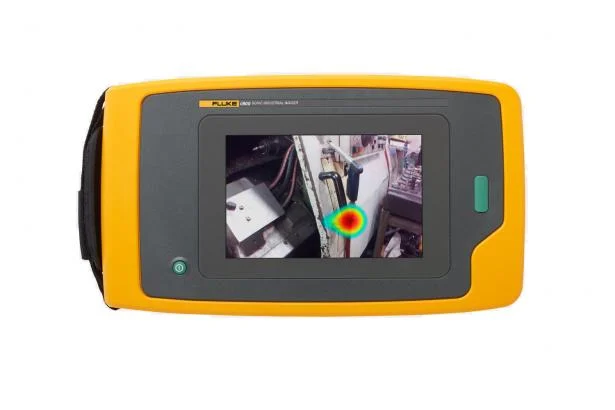

Fluke ii900 Industrial Acoustic Imager
Key Features
- NEW: Leak volume and cost indication on the go
- NEW: CO2 emission reporting
- Improve energy efficiency. Do more with the same air compressors and delay the capital expense of purchasing an additional compressor
- Lower utility and downtime costs
- Reduce time and costs to detect leaks
- Improve production process and pneumatic equipment reliability
- Fluke ii900 Industrial Acoustic Imager
- AC power supply and battery pack charger (including universal AC adapters)
- Two rugged lithium ion smart battery packs
- USB cable
- Rugged, hard carrying case
- Adjustable hand strap and neck strap
Product overview: Fluke ii900 Industrial Acoustic Imager
What's in the box:
Specifications: Fluke ii900 Industrial Acoustic Imager
| Sensors | |
|---|---|

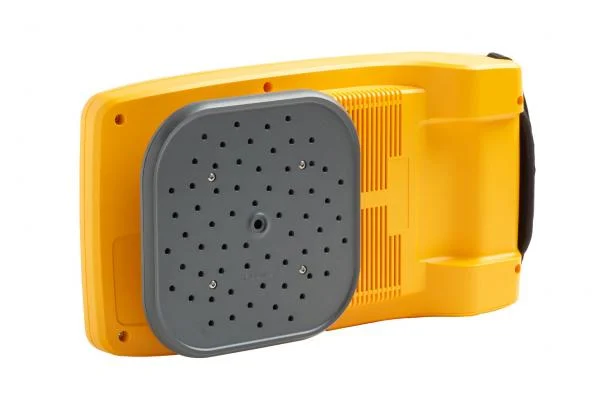

| # of microphones | 64 digital MEMS microphones |
| Frequency band | 2 kHz to 52 kHz |
| Sound pressure sensitivity | Detects a 0.005 CFM leak at 100PSI from up to 32.8 feet (Detects a 2.5 cm3/sec leak at 7 bar from up to 10 meters) |
| Operation distance range | 0.5 to > 70 meters (1.6 to > 164 feet)* |
| Field of View | 63 ° ± 5 ° |
| Nominal frame rate | 25 FPS |
| *Depending on ambient conditions | |
| Built-in digital camera (visible light) | |
|---|---|
| Field of View (FOV) | 63 ° ± 5 ° |
| Focus | Fixed lens |
| Zoom | 3 x Digital Zoom |
| Resolution | 1.2 MP |
| Display | 7" LCD with backlight, under-sunlight readable |
|---|---|
| Resolution | 1280 x 800 (1,024,000 pixels) |
| Touchscreen | Capacitive |
| Acoustic Image | Yes, the SoundMap™ image |
| Image storage | |
|---|---|
| Storage capacity | 20GB (>5000 pictures / >999 videos) |
| Image format | Blended visual and SoundMap™.JPG or PNG |
| Video format | Blended visual and SoundMap™.MP4 |
| Video length | Up to 5 minutes |
| Digital export | USB-C for data transfer |
| Acoustic Measurements | |
|---|---|
| Sound pressure (typical) | 15.4 dB to 115.2 dB SPL (±1 dB) at 2 kHz 5.6 dB to 102.5 dB SPL (±2 dB) at 19 kHz 28.4 dB to 131.1 dB SPL (±1 dB) at 35 kHz 41.8 dB to 133.1 dB SPL (±3 dB) at 52 kHz |
| Auto max/min dB gain | Auto or manual, user-selectable |
| Frequency band selection | User-selectable through user-made presets or manual entry |
| Classification and quantification | LeakQ™ Leak size and cost estimation |
| Software | |
|---|---|
| Ease of use | Intuitive user interface |
| Trend graphs | Frequency and dB scale |
| Spot markers | dB level reading at the center point of the image |
| Asset ID | QR code-based asset ID identification |
| Asset Inspection Status: | 'As left', 'As found' ; 'Undetermined' |
| Photo notes | Up to 4 photo notes for reference |
| Source | Show single or multiple sources |
| Profile | Preset capture profiles |
| Annotation: | Asset name; Asset ID; Asset type; Leak type; Gas type; Pressure; |
| Other | Operating conditions; Weather notes |
| Leak values | Leak costs; Leak volume; LeakQ™ scale |
| Battery | |
|---|---|
| Batteries (field-replaceable, rechargeable) | Rechargeable Li-ion |
| Battery life | 6 hours (product includes spare battery) |
| Battery charging time | 3 hours |
| Battery charging system | External charger |
| General Specifications | |
|---|---|
| Standard palettes | 3: Grayscale, Ironbow, Blue-Red |
| Operating Temperature | -10 °C to 45 °C (14 °F to 113 °F) |
| Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) Without batteries |
| Relative humidity | 10 % to 95 % non-condensing |
| Size (H x W x L) | 186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches) |
| Weight (battery included) | 1.8 kg (3.95 pounds) |
| Ingress Protection (IP) | IP41 |
| Warranty | 2 year |
| Fluke Premium Care | Premium Care Standard** |
| Self-diagnostic notification | Array-health test to identify when the microphone array needs attention |
| Supported languages | Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| RoHS compliant | Yes |
| ** Subject to regional availability | |
| Safety | |
|---|---|
| General Safety | IEC 61010-1 |
| Electromagnetic Compatibility (EMC) International | IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2 CISPR 11: Group 1, Class A |
| Korea (KCC) | Class A Equipment (Industrial Broadcasting & Communication) |
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
Models: Fluke ii900 Industrial Acoustic Imager
FLK-ii900
Fluke ii900 Sonic Industrial Imager
Includes:
- Imager
- AC power supply and battery pack charger (including universal AC adapters)
- Two rugged lithium ion smart battery packs
- USB cable
- Rugged, hard carrying case
- Adjustable hand strap and neck strap
Manuals + resources: Fluke ii900 Industrial Acoustic Imager
Manuals (9)
LeakQ™ / PDQ Mode™ Reporting Tool | Users Manual
ii900 / ii910 | Users Manual
ii900 / ii910 | Users manual supplement
ii900 / ii910 | Safety sheet
ii900 / ii910 | Statement of memory volatility
ii900 / ii910 | Quick reference guide
ii900 / ii910 | Quick reference guide supplement
ii900 / ii910 | Product specification
