JackRapid™ Punchdown Tool
Key Features
Terminate jacks 8 times faster
- Strip cable jacket.
- Determine the wiring scheme. Dress all 4 pairs (8 wires).
- Insert jack in JackRapid front first with IDC slots facing blades of JackRapid.
- Ensure the jack is completely and securely inserted in the jack holder bed with IDC slots facing the blades.
- Pull the trigger completely and remove the excess wire before releasing the trigger.
- Wires will be seated and cut for a solid termination.
- Release the handle and remove the jack from the JackRapid tool. Visually verify proper termination.
Replaceable blade heads
JackRapid blade heads are specific to certain jack types--check the list below to see if JackRapid supports the jacks you use, and if not, look for a new JackRapid version in the future!
| Description | JackRapid-Model Number |

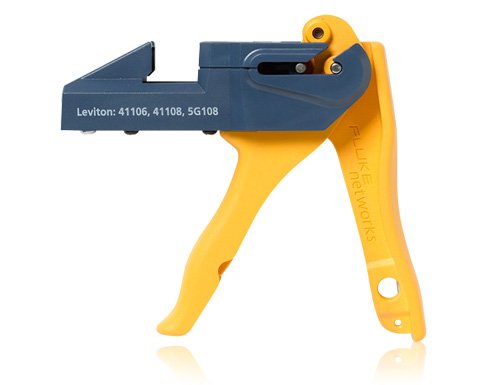

| JackRapid Termination Tool Leviton Jacks Supports jack models: 41106, 41108 Cat3/5, 5G108 Cat5e | JR-LEV-1 |
| JackRapid Blade Head Leviton Jacks Supports jack models: 41106, 41108 Cat3/5, 5G108 Cat5e | JR-LEV-1-H |

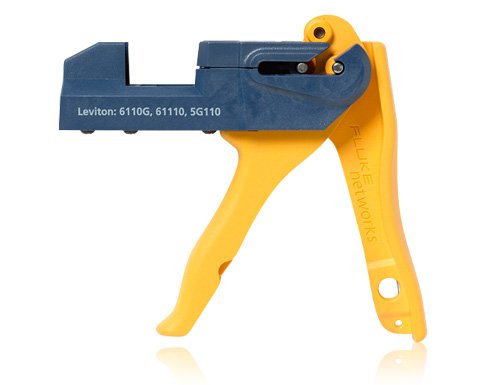

| JackRapid Termination Tool Leviton Jacks Supports jack models: 5G110 Cat 5e, 61110 Cat 6 | JR-LEV-2 |
| JackRapid Blade Head Leviton Jacks Supports jack models: 5G110 Cat 5e, 61110 Cat 6 | JR-LEV-2-H |
| JackRapid Termination Tool SYSTIMAX Jacks Supports jack models: M1BH Cat 3, C5 Cat 5, MPS100E Cat 5e | JR-SYS-UNI-1 |
| JackRapid Blade Head SYSTIMAX Jacks Supports jack models: M1BH Cat 3, C5 Cat 5, MPS100E Cat 5e | JR-SYS-UNI-1-H |
| JackRapid Termination Tool SYSTIMAX Jacks Supports jack models: MGS400 Cat 6, MGS500 Cat 6 | JR-SYS-2 |
| JackRapid Blade Head SYSTIMAX Jacks Supports jack models: MGS400 Cat 6, MGS500 Cat 6 | JR-SYS-2-H |

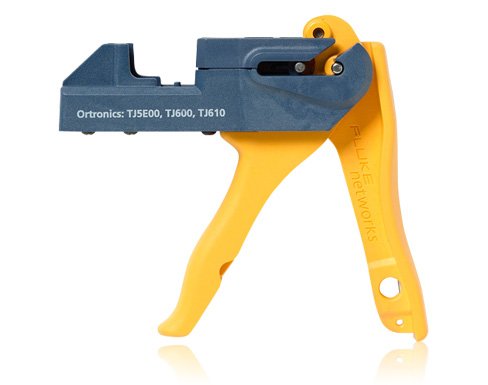

| JackRapid Termination Tool ORTRONICS Jacks Supports jack models: TJ5E00, TJ600, TJ610 | JR-ORT-2 |
| JackRapid Blade Head ORTRONICS Jacks Supports jack models: TJ5E00, TJ600, TJ610 | JR-ORT-2-H |
| JackRapid Termination Tool ADC Jacks Supports jack models: KM8, CopperTen | JR-ADC-2 |
| JackRapid Blade Head ADC Jacks Supports jack models: C6a CopperTen® UTP RJ45 jack and the C6 TrueNet® KM8 UTP RJ45 | JR-ADC-2-H |
| JackRapid Termination Tool Panduit Jacks Supports jack models: NK688M and NKP5E88M | JR-PAN-2 |
| JackRapid Blade Head Panduit Jacks Supports jack models: NK688M and NKP5E88M | JR-PAN-2-H |

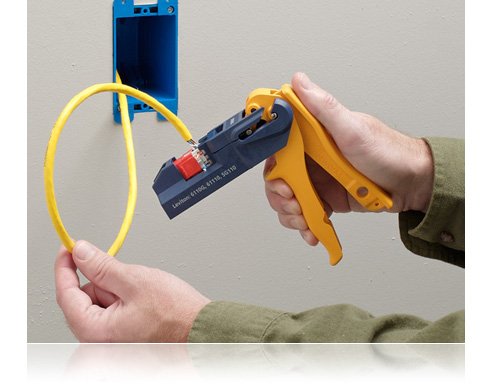

JackRapid™ is a patented jack termination tool that saves time and increases accuracy by seating and terminating all wires at once with a simple squeeze of the handle. JackRapid allows you to terminate jacks eight times faster than traditional impact tools - with an unmatched accuracy.
The patented jack termination tool seats and terminates all wires simultaneously. The built-in blade cuts off the excess wire after it is seated in the connector, eliminating the need for a secondary trim step.
Simple, one-handed operation, with an ergonomically designed handle, reduces hand fatigue. With JackRapid, you’ll never punch into the palm of your hand or through drywall again.
| Models | |
| JR-PAN-2 | JACKRAPID TERMINATION TOOL (for Panduit NK6X88M, NK688M, NKP5E88M) |
| JR-SYS-UNI-1 | JR-SYS-UNI-1,JACKRAPID TERMINATION TOOL (MPS100E,C5,M1BH) |
| JR-LEV-1 | JR-LEV-1, JACKRAPID TERMINATION TOOL (FOR LEVITON 41106, 41108, 5G108) |
| JR-SYS-2 | JR-SYS-2,JACKRAPID TERMINATION TOOL(FOR SYSTIMAX MGS400, MGS600, MFP420, MFP520) |
| JR-ADC-2 | JR-ADC-2, JACKRAPID TERMINATION TOOL (FOR ADC C6a CopperTen® UTP RJ45 jack and the C6 TrueNet® KM8 UTP RJ45) |
| JR-ORT-2 | JR-ORT-2,JACKRAPID TERMINATION TOOL (FOR OPTRONICS TJ5E00, TJ600, TJ610) |
| JR-LEV-2 | JR-LEV-2, JACKRAPID TERMINATION TOOL (FOR LEVITON 61110, 5G110, 6110G) |
| Accessories | |
| JR-ERGOHANDLE | JR-ERGOHANDLE, JACKRAPID ERGONOMIC HANDLE |
| JR-ADC-2-H | JR-ADC-2-H, JACKRAPID REPLACEMENT BLADE HEAD (FOR ADC C6a CopperTen® UTP RJ45 jack and the C6 TrueNet® KM8 UTP RJ45) |
| JR-ORT-2-H | JR-ORT-2-H,JACKRAPID REPLACEMENT BLADE HEAD (FOR ORTRONICS TJ5E00,TJ600, TJ610) |
| JR-SYS-2-H | JR-SYS-2-H,JACKRAPID REPLACEMENT BLADE HEAD(FOR SYSTIMAX MGS400,MGS600, MFP420, MFP520 and Commscope UNJ10G) |
| JR-PAN-2-H | JACKRAPID REPLACEMENT BLADE HEAD(for Panduit NK688M, NKP5E88M) |
| JR-LEV-2-H | JR-LEV-2-H, JACKRAPID REPLACEMENT BLADE HEAD (FOR LEVITON 61110, 5G110, 6110G) |
| JR-SYS-UNI-1-H | JR-SYS-UNI-1-H,JACKRAPID REPLACEMENT BLADE HEAD (MPS100E,C5,M1BH&UNJ600/500/300) |
| JR-LEV-1-H | JR-LEV-1-H, JACKRAPID REPLACEMENT BLADE HEAD (FOR LEVITON 41106, 41108, 5G108) |
Product Highlights
The patented jack termination tool allows you to terminate jacks 8 times faster.
- Cuts installation time - easy to use handle, seats and cuts all wires at once, saving you up to 1 minute installation time per jack!
- High quality, consistent terminations - no more compromised connections and wasted jacks
- Simple, one-handed operation with an ergonomically designed handle reduces hand fatigue
- Unique design easily accommodates close-to-wall installation
- Replaceable blade head for use with multiple jack types
