Fluke 715 Volt/mA Loop Calibrator

Model No :

Key Features

Compact mA calibrator for measuring 0-20 mA or 4-20 mA signals
High accuracy—0.01% and 1 µA resolution
Measures voltage output process signals from PLCs and transmitters
Sources or simulates 4-20 mA loop current
Sources voltage to 100 mV or 10 V

Call Us Now

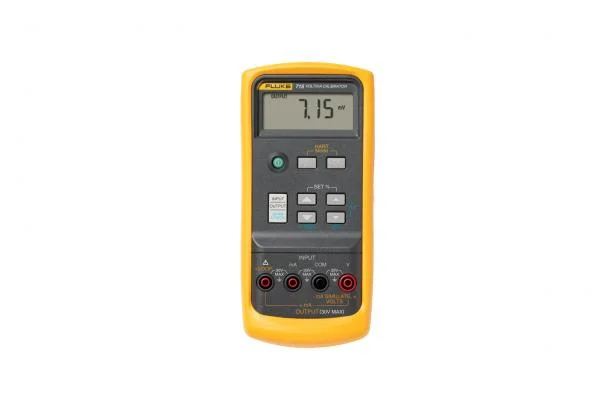

Product overview: Fluke 715 Volt/mA Loop Calibrator

Compact, lightweight, full-featured mA loop calibrator

The Fluke 715 Volt mA Calibrator delivers outstanding performance, durability, and reliability in a compact, lightweight tool. Offered in the rugged Fluke 80 Series digital multimeter package, the calibrator measures loop current as well as voltage output. It sources voltage to 200 mV or 20 V, measures loop current (0-20 mA, 4-20 mA) signals with 0 .01 % accuracy, and 1 µA resolution, and measures voltage output process signals from PLCs and transmitters. It can source or simulate 4-20 mA loop current and provides a 24 V loop supply with simultaneous current measurement.

Provides step and linear ramp output function
Features configurable zero and span settings
Provides 24 V loop supply with simultaneous current measurement
Features enhanced voltage and current measure and source accuracy
Includes a 250-ohm HART resistor with loop power

Easy to use and carry

The 715 is also extremely easy to use with a simple push-button interface. It features the rugged construction that Fluke tools are known for and is EMI-tolerant as well as dust and splash-resistant. It also features a removable battery door for quick battery changes after the 18 hours of battery life the 9 V battery provides. And the tool also comes with a protective yellow holster with test lead storage. For added convenience, the Fluke 715 is also compatible with the ToolPak magnetic meter hanging system.

Related resources

Process calibration articles and resources
Glossary of loop calibration terms
Process calibration tool selector

Specifications: Fluke 715 Volt/mA Loop Calibrator

Functional Specifications
Measure / Source mV	Range	0 to 200 mV
	Resolution	0.01 mV
	Accuracy	0.015% + 2 counts
Measure / Source V	Range	0 to 20 V
	Resolution	0.001 V
	Accuracy	0.01% + 2 counts
Measure / Source/ Simulate mA (% of span)	Range	0 to 24 mA (-25% to 125%)
	Resolution	0.001 mA
	Accuracy	0.01% + 2 counts
		Sink (simulate transmitter) display mA or % of span
Specifications
Loop power	Range	24 V DC
	Accuracy	±10%
		Drive; 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for battery 5.8 to 6.8 V
Display	Clear 5 digit LCD
Environmental Specifications
Operating temperature	-10°C to 55°C
Storage temperature	-40°C to 60°C
Humidity (without condensation)	95% (10°C to 30°C)
	75% (30°C to 40°C)
	45% (40°C to 50°C)
	35% (50°C to 55°C)
Operating altitude	3,000 m max
Safety Specifications
Safety	CSA C22.2 No. 1010.1:1992
Mechanical and General Specifications
Size (L x W x D)	187 x 87 x 32 mm
	(7.93 x 3.86 x 2.06 in)
Weight	Approx. 330 g
	(21 oz)
Warranty	3 years
Shock and vibration	Random, 2 G, 5-500 Hz
	1 m drop test
Battery type	Single 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline

Models: Fluke 715 Volt/mA Loop Calibrator

Fluke 715

Fluke 715 Volt/mA Calibrator

Includes:

Protective yellow holster with test lead storage
Instructions sheet (14 languages)
Single 9V alkaline battery
Test leads and alligator clips
NIST- traceable calibration report and data
