TS® 52 PRO Test Sets
Key Features
TS52 Test Set Features
TS52 PRO Test Set includes:
- Display – Backlit LCD and glow-in-the-the dark keypad
- DataSafe Pro – Superior high-impedance monitoring, lockout, and override, making you completely safe in any mode
- DropSafe – Passes 20-foot drop test

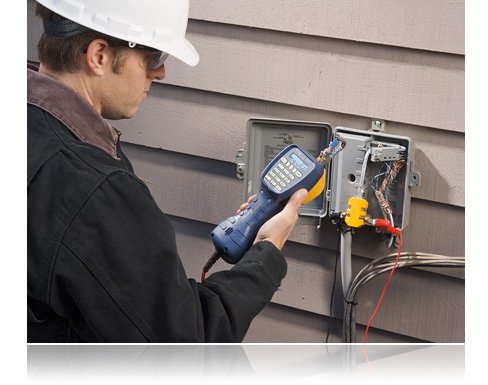

- DSL/POTS Filtering Technology – allows technicians to clip on a live DSL line to test POTS service without downing or disrupting data service
- RainSafe – Designed for use in rain conditions.
Five Testing Functions:
- Data indication – warns when data is present.
- Voltage indication – troubleshooting feature to identify potential line problems
- Current (mA) indication – verifies sufficient line current
- Caller-ID – verifies service is functional
- DTMF Digit Grabbing – Isolate faulty customer premise equipment
Other features:
- Data lockout with data lockout override
- 2-Way hands-free speakerphone: for true hands-free conversation
- Line and battery powered: shares power from the telephone line and the 9v internal battery, increasing the life of the battery
- Replaceable heavy-duty braided cord and locking spring loaded belt clip
- Low battery indication
- Mute indication
- Polarity indication
- Tone & pulse dialing
- (Optional) 1-Way amplified speakerphone mode
- Amplified speaker
- Last number redial
- Over-voltage protection
- Over current protection
- High voltage lockout
- Mute
- PBX pause button
- Speed dialing
- Volume control levels
- Hearing aid compatible
- Visual ANAC mode
Durability & Exterior:
- Rainsafe and Weatherproof case design for severe weather conditions.
- DropSafe™ 20ft onto concrete

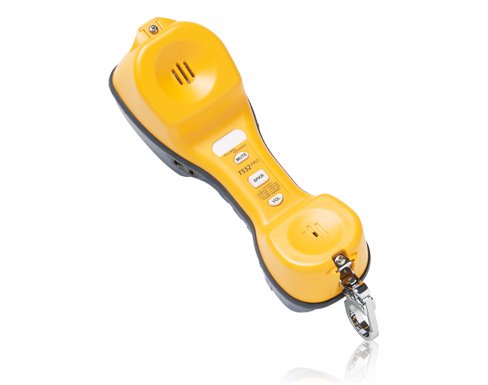

- Mountable, top or bottom, extra large metal locking belt clip
- Line cord strain relief

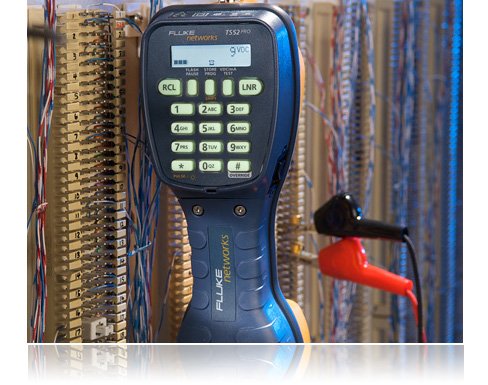

Fluke Networks’ new TS52 PRO Test Set features the latest in test set technology. Designed with a superior, radiant liquid crystal display (LCD) user interface, it allows you to see what cannot be heard in any outside plant environment.

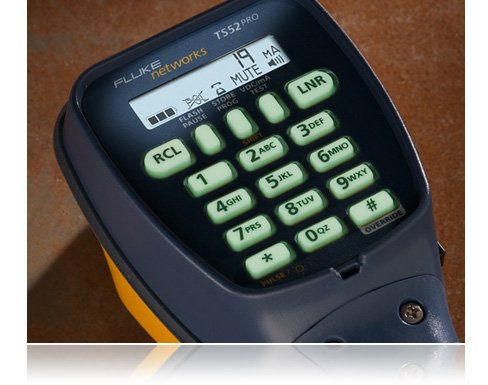

The back-lit LCD and phosphorescent (glow-in-the-dark) keypad bring light to even the darkest of work environments, providing perfect line diagnostic clarity.
The TS52 PRO Test Set is also equipped with a 2-way speakerphone and DataSafe™ Pro data protection technology featuring superior high-impedance monitoring, Data Lockout, and Lockout Override, making you completely safe.
| Electrical | |
| Current Range (Off-Hook) | 10 mA to 100 mA |
| DC Resistance | |
| Off-Hook | 150 Ω nominal |
| On-Hook | >3 M Ω |
| AC Impedance | |
| Off-Hook | 600 Ω nominal; 300 Hz to 3400 Hz |
| On-Hook | >120 kΩ 300 Hz to 3400 Hz |
| Rotary Dial Output | |
| Pulsing Rate | 10 pps ±1 pps |
| Break/Make Ratio | 60/40 |
| Interdigit Interval | >300 ms |
| Resistance During Break | >100 kΩ |
| DTMF Output | |
| Tone Frequency Error | ±1.5 % maximum |
| Tone Level | -3 dBm combined (typical) |
| High versus Low Tone Difference | 2 dB ± 2 dB |
| Memory Dialing | |
| Memory Capacity | 10 speed dial memories plus one last number redial memory |
| Digit Capacity | 23 digits per memory |
| PBX Pause Duration | 4 seconds |
| Hook Flash Duration | User programmable; default of 600 ms |
| Automatic Speaker Shut Off Duration | User programmable; default of 2 minutes |
| Battery | 9 V alkaline battery |
| Physical | |
| Measurement | 10 in x 3.75 in x 4.25 in (254 mm x 96 mm x 107 mm) |
| Weight | Less than 1.5 pounds (0.68 kg) with one belt clip |
| Water Resistance | Designed to be rain and moisture resistant. |
| Drop Test | Passes 20 foot drop test |
| Temperature Range | |
| Handset speech and dialing functions | -22°F to 140 °F (-30°C to 60°C) |
| LCD function | -13°F to 140°F (-25°C to 60°C) |
| Storage | -22°F to 150°F (-30°C to 66°C) |
| Altitude | To 10,000 ft. (3,000 m) max |
| Relative Humidity | 95% to 30°C |
| 75% to 40°C | |
| 45% to 50°C | |
| 30% to 60°C | |
| Safety | Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 61010-1 (2004) and IEC/EN 61010-1 2nd Edition for measurement Category I, 300 Vdc Max, Pollution Degree 2 |
| EMC | Complies with EMC EN61326-1 |
| Models | |

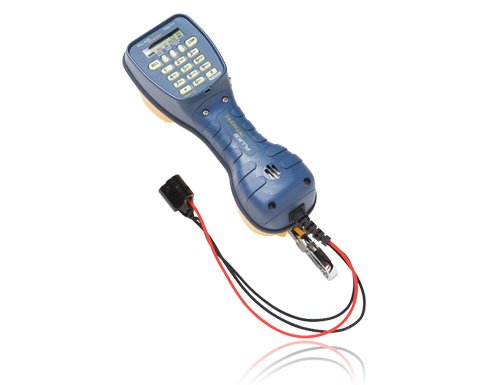

| 52801001 | TS52 PRO test set with piercing pin clips |
| 52801004 | TS52 PRO test set with 346A plug |
| 52801009 | TS52 PRO test set with ABN/PP clips |
| 52801RJ9 | TS52 PRO test set with ABN/PP and RJ11 plug |
Product Highlights

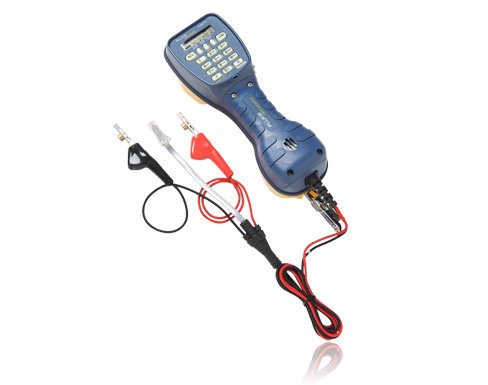

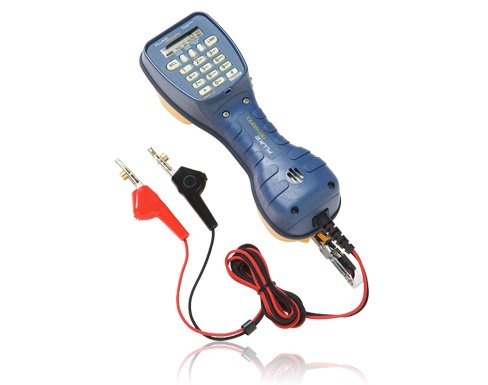

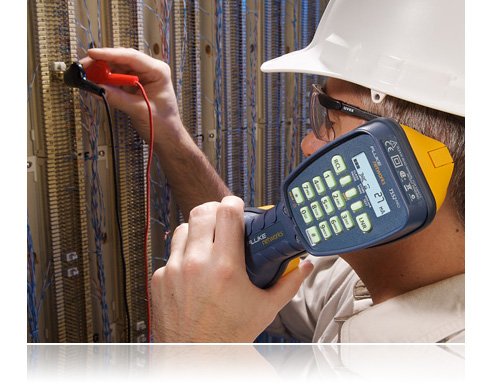

The TS52 PRO telephone Test Set features a backlit LCD and glow-in-the-dark keypad.
- Display—backlit LCD and glow-in-the-the dark keypad
- DataSafe Pro—superior high-impedance monitoring, lockout, and override, making you completely safe in any mode
- DropSafe—passes 20-foot drop test
- DSL/POTS Filtering Technology—allows technicians to clip on a live DSL line to test POTS service without downing or disrupting data service
- RainSafe–designed for use in rain conditions.
- 2-way hands-free speakerphone—for true hands-free conversation
- Test Functions
- Data indication—warns when data is present.
- Voltage indication—troubleshooting feature to identify potential line problems
- Current (mA) indication—verifies sufficient line current
- Caller-ID—verifies service is functional
- DTMF Digit Grabbing—isolate faulty customer premise equipment
