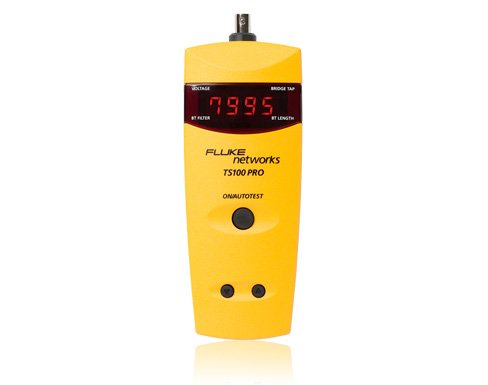

TS® 100 PRO Cable Fault Finder with PowerBT™ Bridge Tap
Key Features
TS100 PRO Features and Benefits
Features:
- Bridge tap detection for xDSL pre-qualification
- Reports distance to multiple bridges taps up to 3,200 feet (975 meters)
- Sees past bridge taps to the end of the cable
- Long-distance tester—tests open and shorts up to 8,000 feet (2.4 kilometers)
- Patented SmartTone tone generator with five different tones for exact pair identification
- Built-in TDR (Time Domain Reflector)
- AC/DC voltage detection
- One-button testing
- Built-in toner
Benefits:
- Affordable bridge tap detection
- Improve xDSL network performance
- Five-in-one tool—distance to bridge taps, open and short circuits, voltage detector and SmartTone with five different tones
- No complicated set up or expertise required
- No interpretation or analyses of complex graphs

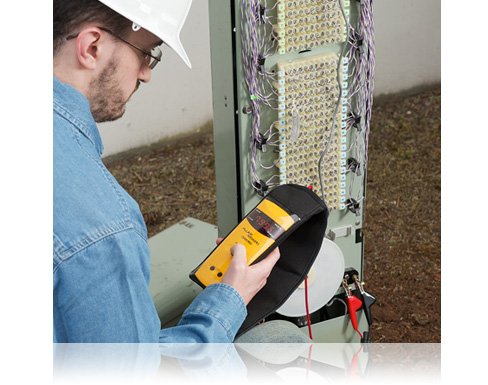

Invest in the right tool for all your technicians. The new TS®100 PRO Cable Fault Finder with PowerBT™ Bridge Tap Detect not only provides open/short circuit detection—to 8,000 feet (2.4 kilometres)—but is also a telecom technician’s first line of defense against bridge taps. Because bridge taps are a significant source of DSL network performance problems, they need to be identified and fixed quickly before causing customer attrition. The TS100 PRO can accurately locate multiple bridge taps in seconds on up to 3,200 feet (975 metres) of cable with the touch of a button.

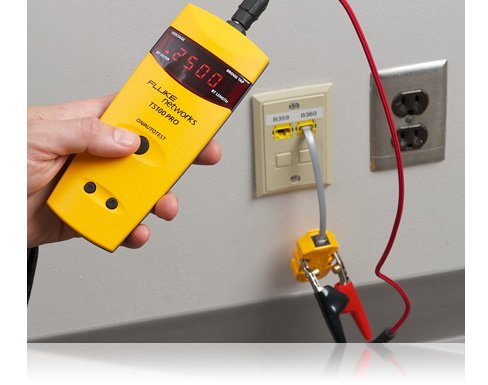

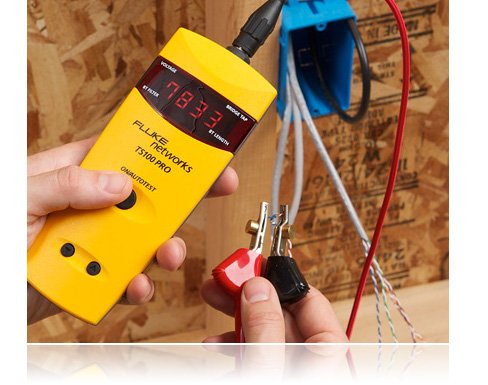

Used by telecommunications, triple-play/voice, data, and video professionals, the TS®100 PRO also gives users a built-in toner with five different tones and patented SmartTone®for exact pair identification and reports AC/DC voltage from just one end of any two conductor wires, telephone wires, security wires or coax cables. This five-in-one cable short circuit tester is so affordable every technician can have one.
| Specifications for the TS100 PRO | |
| Specifications for the TS100 PRO | |
| Maximum Length | 8,000 feet (2,438 meters) on certain cable types, 4,000 feet (1,220 meters) on most cable types, and 500 feet (152 meters) on cables with high loss. The tester shows -Err if the cable is too long to be correctly measured. |
| Representative Maximum Cable Length | 8,000 feet (2,438 meters): CAT-3 Twisted Pair |
| 8,000 feet (2,438 meters): CAT-5 Twisted Pair | |
| 6,000 feet (1,830 meters): 12/2 AC Wire | |
| 3,000 feet (900 meters): RG-6/U TV Coax | |
| 1,500 feet (457 meters): RG-174/U Coax | |
| Minimum Length | No minimum length (can read a bridge tap at 0 feet/meters). Minimum non-zero reading is 2 feet or 1 meter. |
| Length Accuracy | ±2 feet (±0.6 m) for cables less than 10 feet (3 m) |
| ±5 feet (±2 m) for cables longer than 10 feet (3 m) and shorter than 200 feet (60 m) | |
| +/-3%+/-5 feet (±2 m) for cables longer than 200 feet (60 m) | |
| Distance to Bridge Tap | 0 feet to 3,200 feet (975 meters) |
| Minimum Length of Bridge Tap | 10% of the distance to the bridge tap. Dependent on the cable characteristics. |
| Measurement Rate | Maximum of 4 complete measurements per second, decreasing to 2 seconds per measurement based on cable size and uniformity. |
| VOP | Adjustable from 20 to 99, saved in flash memory. |
| Test Technology | Time Domain Reflectometry (TDR) with 100 Ω drive impedance, 6v maximum pulse height. |
| Cable Type | Virtually all two or more conductor cables. |
| Power | 4 AA alkaline batteries. |
| Reverse Battery Protection | No damage to the tester will occur if the batteries are installed backwards. |
| Battery Life | 35 hours (typical) |
| Low Battery Indication | LED display alternates between LO and bAtt when the battery voltage falls below 4.5v. |
| Maximum Output Voltage | 4 voltage peak |
| Maximum Isolation Voltage | 250 volts RMS |
| Voltage Measurements | Range: 0 volts AC to 115 volts AC; 0 volts DC to ±150 volts DC |
| Accuracy: AC: +/-1%+/-2 volts (45 Hz to 65 Hz); DC: +/-1%+/-2 volts DC | |
| High Voltage Detection | AC voltage detected to 115 volts; DC voltage detected to ±150 volts. |
| AC voltage ≥90 volts or DC voltage ≥100 volts causes high voltage warnings to show on the display | |
| SmartTone® (5-tones) Range | 7,000 feet (2,134 meters) |
| Toner Range | 52,800 feet (16,093 meters) |
| Tone Injection | Approximately 1 kHz at an amplitude of 80% of battery voltage. Variable frequency and cadence. Tone characteristics change as cable condition changes to “normal-open” from any other condition. |
| Impedance Range | 35 Ω to 330 Ω with auto-compensation within this range. Cables with impedances outside this range will not be properly tested and may produce erratic or incorrect readings. |
| Temperature Range | Operating: 32°F to 104°F (0°C to 40°C) |
| Storage: 32°F to 131°F (0°C to 55°C) | |
| Humidity | Operating: 20% to 80% relative humidity |
| Storage: 0% to 100% relative humidity | |
| Operating Humidity | 80% maximum at 86°F (30°C ) |
| 50% maximum at 104°F (40°C ) | |
| Operating Altitude | 9,843 ft max (3,000 m max) |
| Weight | 1 lb (454 grams) |
| Dimensions | 7.4 in x 2.7 in x 1.4 in (18.8 cm x 6.9 cm x 3.6 cm) |
| Safety | IEC 61010-1:2010; N10140 |
| EMC: IEC/EN61326-1:2006 | |
| Certifications and Compliance | |
| Conforms to relevant European Union directives | |
| Conforms to relevant Australian standards | |
| IEC/EN61010-1 CAN/CSA-C22.2 No. 1010.1-92 + CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1 | |
| Models | |
| TS100-PRO-BT-TDR | TS100 PRO Cable Fault Finder TDR Kit with Bridge Tap Detect |
| LEAD-ABNP-100 | Test lead with angled bed-of-nails and piercing pin. Compatible with the TS100 and TS100 PRO |

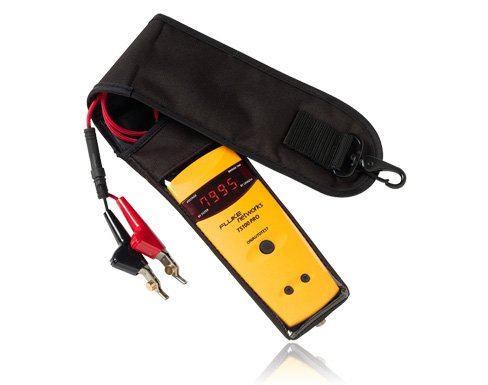

| CASE-TS100 | TS100/TS100PRO pouch with Fluke Networks’ logo |

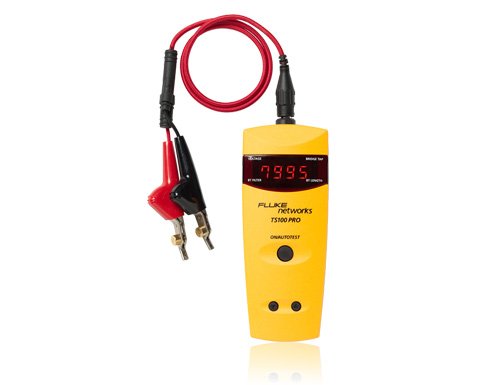

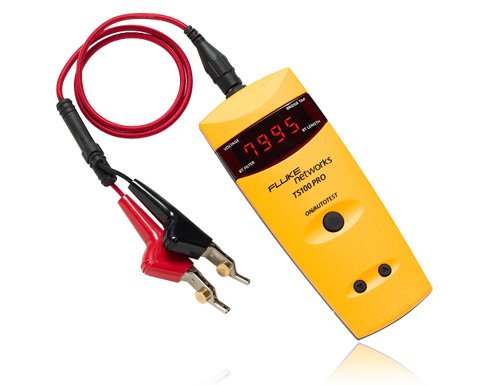

| LEAD-ALIG-100 | Test lead with alligator clips. Compatible with the TS100 and TS100 PRO |
| LEAD-ABN-100 | Test lead with angled-bed-of-nails. Compatible with the TS100 and TS100 PRO |
Product Highlights
Bridge tap detection at the touch of a button.
- Reports distance to multiple bridges taps up to 3,200 feet (975 meters)
- Tests open and shorts up to 8,000 feet (2.4 kilometres)
- Patented SmartTone for exact pair identification
- Built-in TDR and toner
- AC/DC voltage detection
- One-button testing
