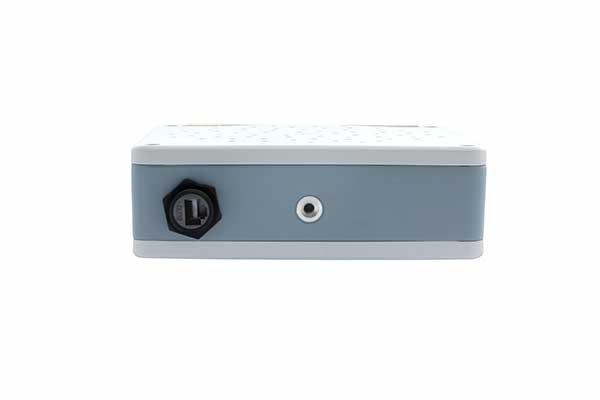

SV600 Fixed Acoustic Imager

Model No :

Key Features

See what you’ve been missing

Minimize operator intervention with a fully automated and integrated solution
Capture data from inaccessible or dangerous areas to keep your team safe
Monitor sound signature changes in real time to prevent unscheduled maintenance

The SV600 Fixed Acoustic Imager enables users to continuously detect, locate, and visualize air and gas leaks or changes in sound signatures before they become costly problems.

Discover the power of autonomous robotics and industrial maintenance working together. The SV600 can be mounted for various continuous acoustic imaging applications – including as a Boston Dynamics Spot® payload. With the latest firmware 3.3 release for Spot®, the SV600 is fully integrated into the robotic system, making it the perfect partnership of convenience and functionality.

Call Us Now

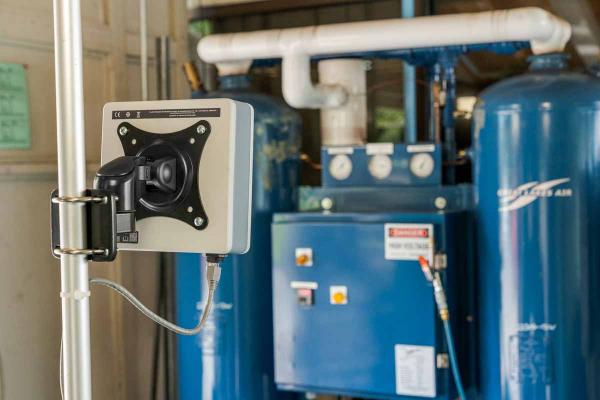

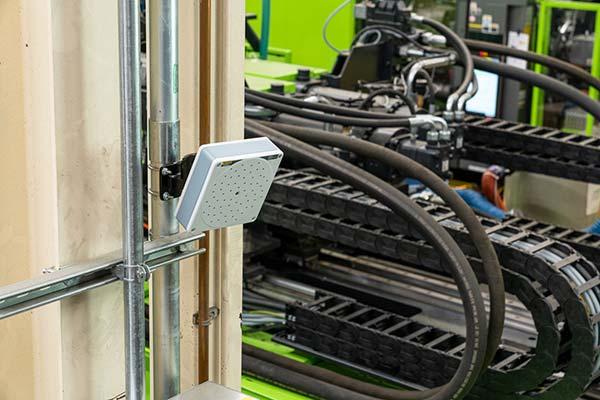

By using an array of sophisticated sound sensors, the SV600 can be mounted close to any equipment or asset, to any area of the production line, or where human access is restricted or dangerous to ensure you can monitor the most important parts of your facility without interruption.

As a fixed, automated solution, the SV600 integrates with your process and eliminates the need for lengthy fault-finding processes such as soapy water tests, when used as part of your product leak testing process. By continuously monitoring your environment, you can quickly detect and fix air leaks – reducing your consumption of compressed air and energy to help save your facility money.

Key Features:

High-end 24/7 acoustic monitoring
64-Digital MEMS microphones placed in a Sunflower Array
Integrated visual light camera
Powerful processor for onboard real-time processing
- Sound classification
- Frequency filtering
- dB values and sound intensity mapping
- Event triggering
Ethernet network communications interface with installed 8-wire M12 fieldbus or RJ45 connector
Power over Ethernet (POE)
Ingress Protection IP54
Option for IO support through fieldbus coupler

SoundMap™ Technology

By using powerful SoundMap™ technology, the SV600 translates the sounds that it hears into a visual representation so that you can quickly locate and quantify problem areas. This provides facilities with further insights into product quality or safety concerns, as well as the ability to quickly detect changes across compressors, pumps, pipes, and more.

In addition to 24/7 remote monitoring, the SV600 integrates into factory systems seamlessly and user-defined alarms can be established to alert users when sound signatures have changed, even in the parts of your facility that are hard to reach.

By serving as an early warning system, facilities can continuously monitor equipment to optimize performance, perform preventative maintenance or detect anomalies well before a failure occurs to keep your processes up and running.

SV600 Payload for Spot® from Boston Dynamics

The SV600 Acoustic Imager can be used as a payload for Spot® from Boston Dynamics. Spot automates sensing and inspection, while the SV600 enables you to continuously detect, locate and visualize the unheard and unseen.

Capture limitless data with Boston Dynamics' remote inspection software, Scout. See the full potential of autonomous robotics for your industrial maintenance needs. Explore the future of maintenance with Fluke Process Instruments and Boston Dynamics.

Request more information or a quote.

Physical Properties

Dimensions (L x W x D)	170 x 170 x 65 mm (6.69 x 6.69 x 2.56 inch)
Weight	0.85 kg (1.7 lbs)
Communication + Power	POE IEEE 802.3af SV600-1 Connected via RJ45 or M12 8-Pin; IEEE 802.3 Status LED

System Integration

Event Triggering	Set alarm levels for sound level (dB) and frequency (kHz) range
Event Actions	Recording to external PC as .csv or .txt file

Camera

Integrated Visible Light	Included with fixed lens
Resolution Video	640 x 480
Camera Field of View	65° ±3°
Camera Resolution	720 p at 30 fps

Microphones

Type	MEMS, Digital Bottom Port
SNR (A-weighted, at 1 kHz)	64 dB for 94 dB SPL @ 1kHz
Sensitivity	-26 dB FS +/-1.5 dB at 1 kHz, 94 dB SPL
Acoustic Overload Point	120 dB SPL at 1 kHz, <10 % THD

General

Ingress Protection	IP54
Operating Temperatures	-20 °C to 50 °C (4 °F to 122 °F)

Compliance

FCC	Title47.Part 15
EMC	EN55032:2015 EN61000-4-2:2009 EN61000-4-3:2006 EN61000-4-4:2012 EN61000-4-5:2006 EN61000-4-6:2009 EN61010-1:2010
KCC	Electromagnetic Compatibility. Applies to use in Korea only. Class A Equipment (Industrial Broadcasting & Communication Equipment)

Data Formats

Audio	.wav (audio verification)
Pictures	.jpg, .png
Video (V/V+ models)	.mjpeg, .mp4
Data Messages	.json

System Setup

The SV600 Fixed Acoustic Imager can be used across numerous industries and is ideal for continuous monitoring and control. Several places where the SV600 can be used include the following list below. Speak with an expert to discuss your application.

Intelligent leak detection for product inspection
Using factory integration and real-time alarm features, the SV600 can automate acoustic detection on the production line and immediately notify your team of any quality issues or product rejects, improving productivity.
Mount and move
Quickly access remote or hazardous areas, collect real-time data, and perform thorough inspections without putting human inspectors at risk in industries such as manufacturing, energy, infrastructure, and more.
Minimize human intervention
Improve workers’ safety overall with a fully integrated, automated solution.
Monitor assets and workspaces 24/7
Continuously monitor assets in dangerous or inaccessible locations at a safe distance, receive immediate alarms for new sound events or detect escaping gases from fixed equipment.
Prevent unscheduled maintenance
Sound signatures are measurable well before any change in temperature can be detected. The SV600 can be used to find sound signature changes early on so facilities can schedule preventative maintenance and optimize performance before a failure occurs.
Reduce power consumption
By quickly detecting and fixing air leaks, you can reduce your consumption of compressed air and energy to help save your facility money. Faulty, inefficient drive systems need to work harder, consuming additional power to stay operational.
Reduce noise exposure
The SV600 includes user-programmable alarms for sound level (dB) and frequency (kHz) to help facilities better meet national and international standards and ensure workers are not exposed to dangerous noise and sound levels.
