How to Use a Network Cable Tester
Mar 01,2023

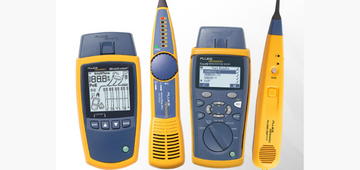

You may find and fix problems with Ethernet and other network cabling systems by using a network cable tester. The general procedures for utilising a network cable tester are as follows:
- Prepare the network cable tester: Make sure the tester is properly connected to any remote equipment or adapters that may be required for testing, and that it is completely charged or has new batteries.
- Connect the tester to the cable: If necessary, connect the test cable's other end to a remote unit and the test cable's other end to the tester's main unit.
- Select the test mode: Based on the kind of cabling system being evaluated and the particular test requirements, select the tester's suitable test mode.
- Run the test: Run the test by adhering to the tester's instructions. The tester may run a number of tests, including continuity, wire mapping, length measurement, attenuation, and crosstalk, depending on the test mode that is chosen.
- Interpret the test results: The tester will show the test results when the test is finished. To find any problems or errors with the cabling system, thoroughly review the results. In-depth reports and graphs of the test results may also be provided by some testers.
- Troubleshoot and fix any issues: Fix the issue in accordance with the specific issue if the test results show any flaws or errors. For instance, examine the cable connections to ensure they are properly terminated if the tester reveals an open circuit.
- Repeat the test: Repeat the test to verify that the cabling system is operating properly after addressing any problems or errors.
Document the results: Retain a copy of the test findings for your records and to make sure the cabling system continues to function properly over time.
